    Duplexer 436.5 ~ 460MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

    (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o4015511804365460NK

    CH1

    436.5~443.5

    65

    2.0

    1.3

    N Female

    CH2

    453 ~ 460

    Basic Specifications

    Dimension

    155*118*65mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

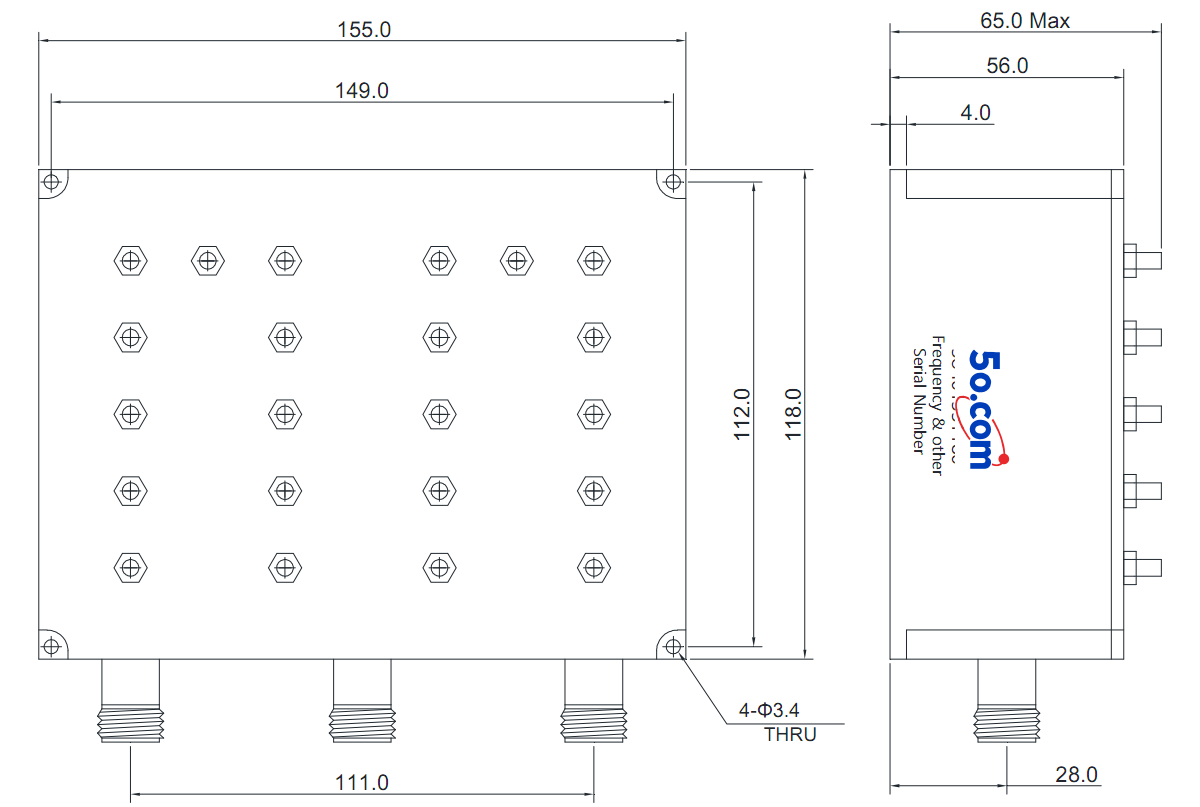

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
