    Duplexer 436.5 ~460MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector

    Type

    5o4015115106990746SK

    CH1

    699 ~   716

    75

    1.5

    1.22

    100

    SMA Female

    CH2

    729 ~   746

    5o401511510703803SK

    CH1

    703 ~   748

    60

    1.5

    1.22

    100

    SMA Female

    CH2

    758 ~   803

    5o401511510791862SK

    CH1

    791 ~   821

    65

    1.5

    1.22

    100

    SMA Female

    CH2

    832 ~   862

    5o401511510814894SK

    CH1

    814 ~   849

    65

    1.5

    1.22

    100

    SMA Female

    CH2

    859 ~   894

    5o401511510880960SK

    CH1

    880   ~915

    65

    1.5

    1.22

    100

    SMA Female

    CH2

    925 ~ 960

    5o401511510880960NK

    CH1

    880   ~915

    65

    1.5

    1.22

    100

    N Female

    CH2

    925 ~ 960

     Basic Specifications

    Dimension

    151*151*44mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

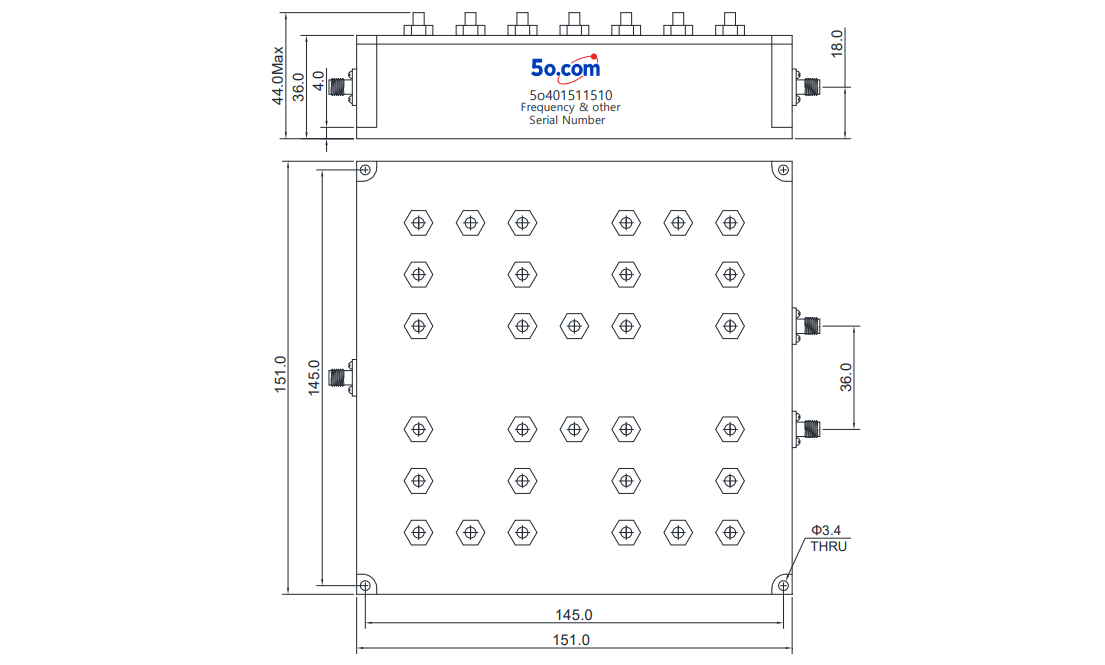

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
