    Duplexer 850 ~ 1610MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion Loss
      Max(dB)

    Return Loss

    Min(dB)

    Connector Type

    5o401507508501610SK

    CH1

    850 ~ 980

    30

    0.6

    0.8

    16

    SMA Female

    CH2

    1150 ~ 1610

    5o401507508501610NK

    CH1

    850 ~ 980

    30

    0.6

    0.8

    16

    N Female

    CH2

    1150 ~ 1610

    Basic Specifications

    Dimension

    150*75*43mm

    Impedance

    50Ω

    Power

    75W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

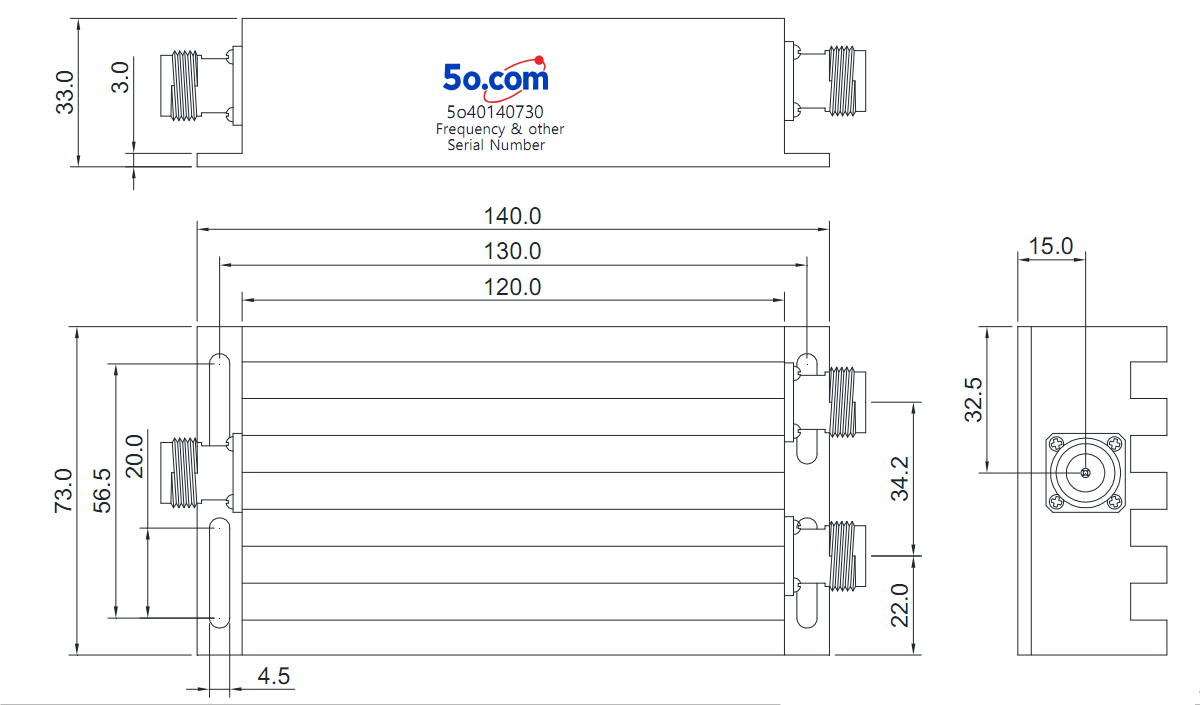

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
