    Duplexer 412 ~ 430MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector

    Type

    5o401501760412430SK

    CH1

    426 ~ 430

    70dB@DC~416MHz
      60dB@440~500MHz

    1.5dB

    Ripple 0.5dB

    1.3

    SMA Female

    CH2

    412 ~ 416

    60dB@DC~402MHz
      70dB@426~430MHz

    5o401501760412430NK

    CH1

    426 ~ 430

    70dB@DC~416MHz
      60dB@440~500MHz

    1.5dB

    Ripple 0.5dB

    1.3

    N Female

    CH2

    412 ~ 416

    60dB@DC~402MHz
      70dB@426~430MHz

    Basic Specifications

    Dimension

    150*176*75mm

    Impedance

    50Ω

    Power

    20W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

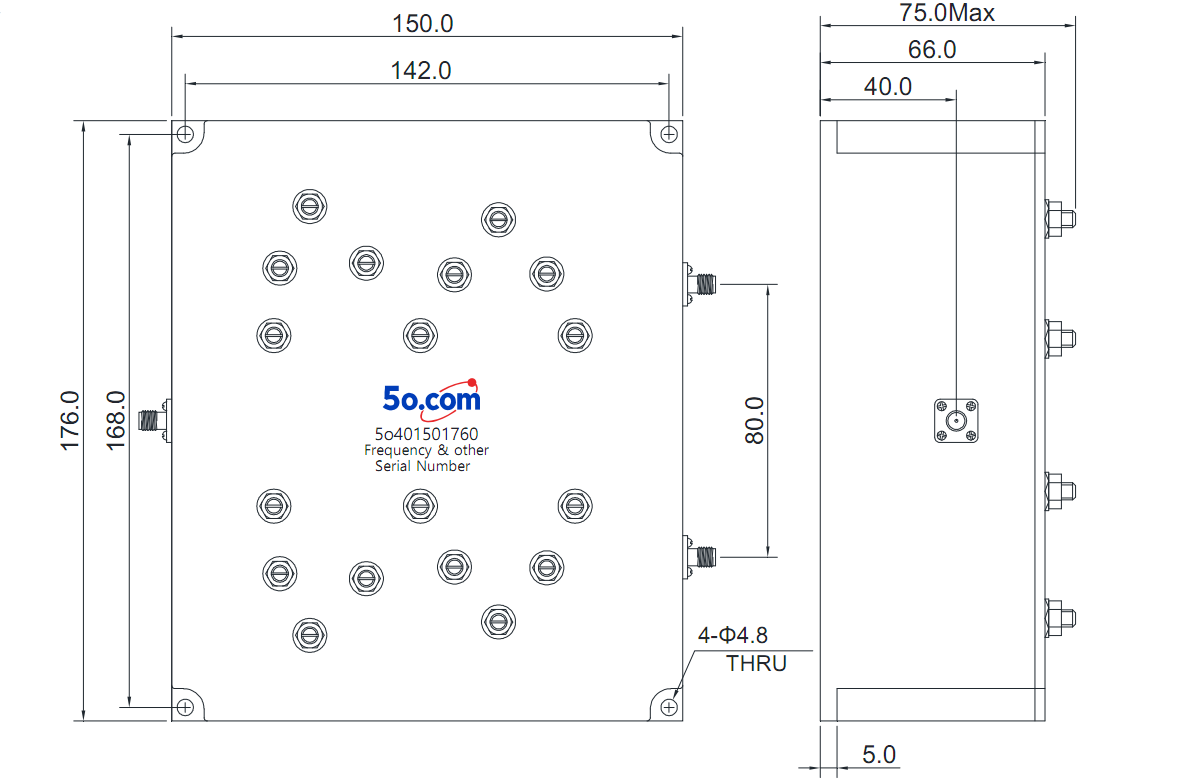

    Overall Dimension(mm)


       Tolerances: ±2% unless otherwise stated.
