    Duplexer 151 ~160MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

    (MHz)

    Isolation
      Min(dB)

    Ripple
      Max(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o401483100151160SK

    CH1

    151.06~154.125

    65

    0.6

    1.0

    1.35

    SMA Female

    CH2

    158.765~ 160.09

    5o401483100151160NK

    CH1

    151.06~154.125

    65

    0.6

    1.0

    1.35

    N Female

    CH2

    158.765~ 160.09

    Basic Specifications

    Dimension

    148*310*156mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -20 ~ +65℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

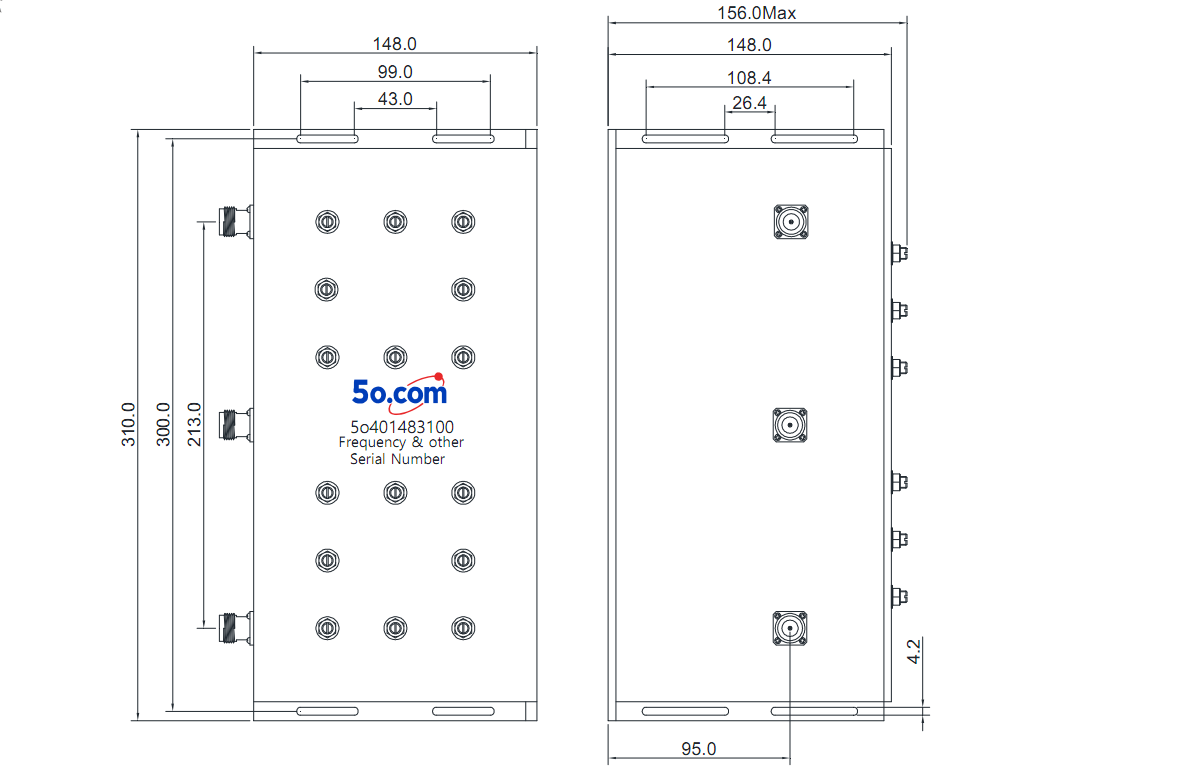

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
