    Duplexer 60 ~ 800MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple

    (dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Connector

    Type

    Operating   Temperature (℃)

    5o4014073060175NK

    CH1

    60 ~ 110

    50

    0.7

    1.0

    1.3

    N Female

    -30 ~ +70

    CH2

    148 ~ 175

    5o4014073087470NK

    CH1

    87 ~ 108

    80

    0.4

    0.5

    1.25

    N Female

    -30 ~ +70

    CH2

    400 ~ 470

    5o4014073087470SK

    CH1

    87 ~ 108

    80

    0.4

    0.5

    1.25

    SMA Female

    -30 ~ +70

    CH2

    400 ~ 470

    5o40140730137800NK

    CH1

    137 ~ 174

    65

    0.6

    0.8

    1.25

    N Female

    -10 ~ +55

    CH2

    700 ~ 800

    5o40140730400800NK

    CH1

    400 ~ 470

    65

    0.6

    0.8

    1.25

    N Female

    -10 ~ +55

    CH2

    700 ~ 800

    Basic Specifications

    Dimension

    140*73*33mm

    Impedance

    50Ω

    Power

    100W

    Connector Type

    N/SMA

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

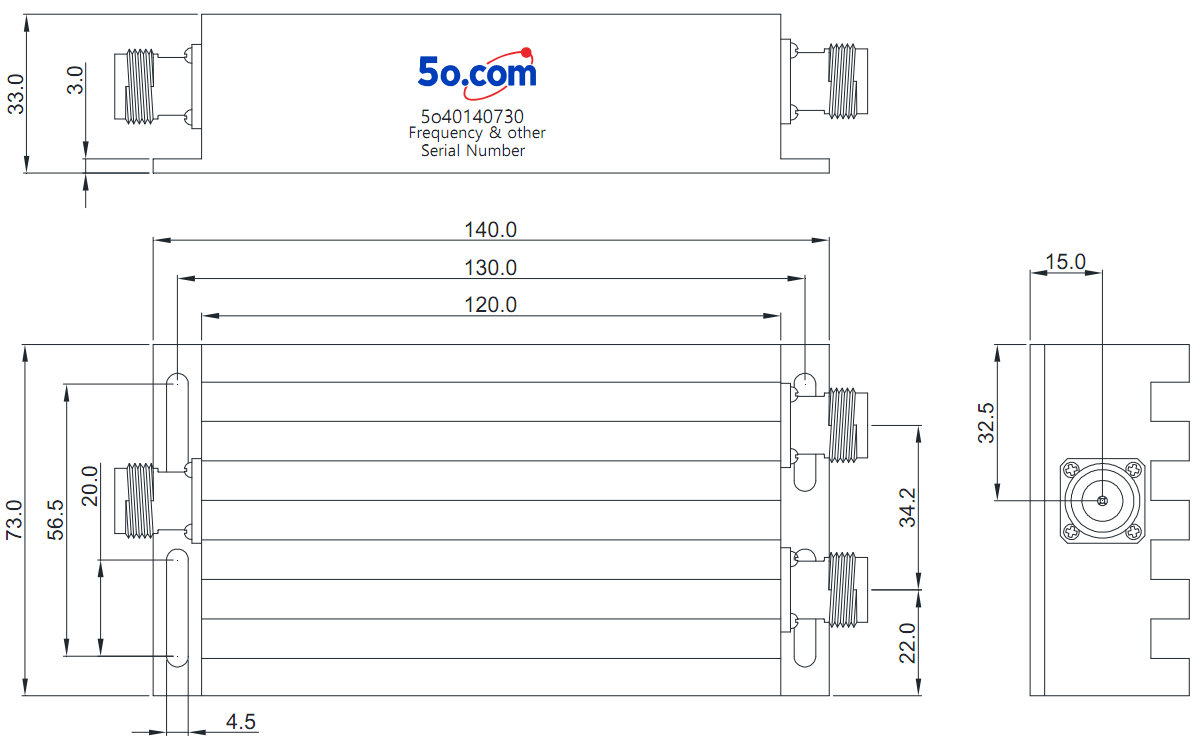

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated
