    Duplexer 450 ~1520MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o4014011004501520SK

    CH1

    450 ~ 530

    80

    0.4

    0.5

    1.25

    SMA Female

    CH2

    1420 ~ 1520

    5o4014011004501520NK

    CH1

    450 ~ 530

    80

    0.4

    0.5

    1.25

    N Female

    CH2

    1420 ~ 1520

    Basic Specifications

    Dimension

    110*140*49mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -55 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

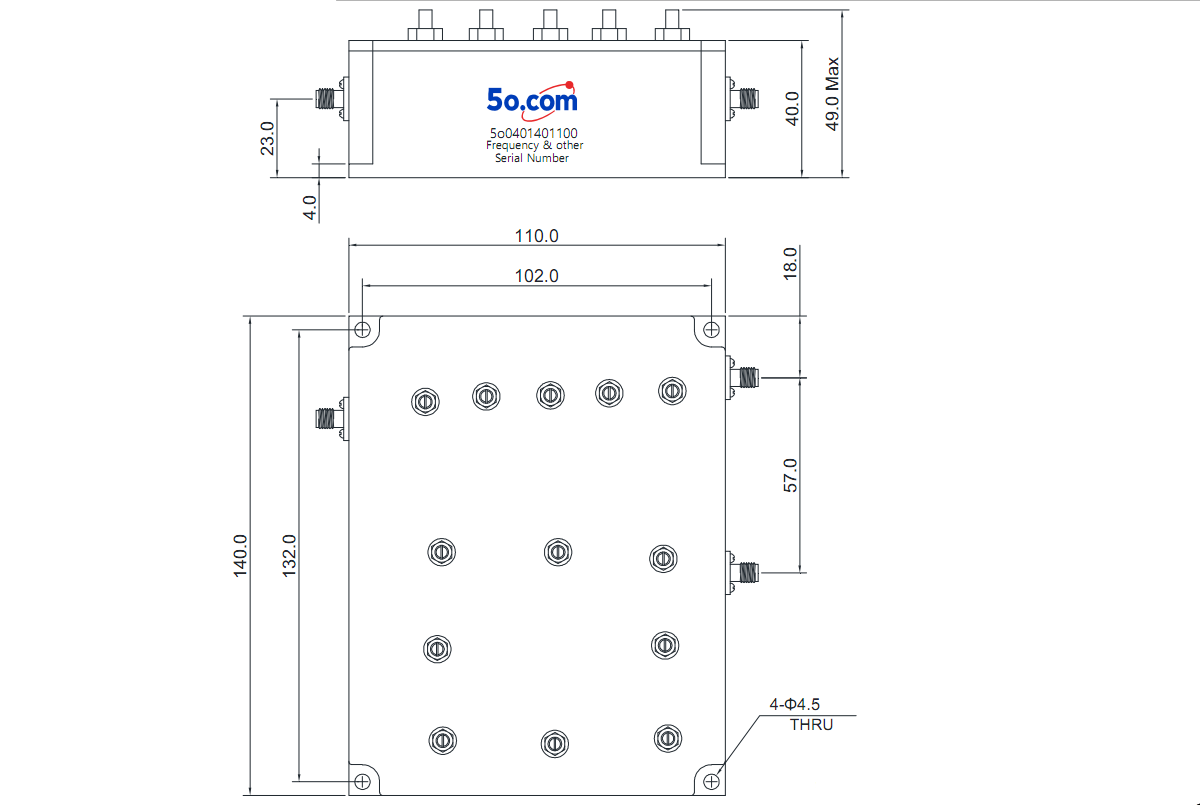

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
