    Duplexer 380 ~425MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Power(W)

    Connector

    Type

    5o401361790380395SK

    CH1

    380 ~ 385

    50

    2.5

    1.5

    100W

    SMA   Female

    CH2

    390 ~ 395

    5o401361790380395NK

    CH1

    380 ~ 385

    50

    2.5

    1.5

    100W

    N Female

    CH2

    390 ~ 395

    5o401361790380429SK

    CH1

    380 ~ 395

    65

    2

    1.4

    100W

    SMA   Female

    CH2

    417 ~ 429

    5o401361790380429NK

    CH1

    380 ~ 395

    65

    2

    1.4

    100W

    N Female

    CH2

    417 ~ 429

    Basic Specifications

    Dimension

    136*179*68mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

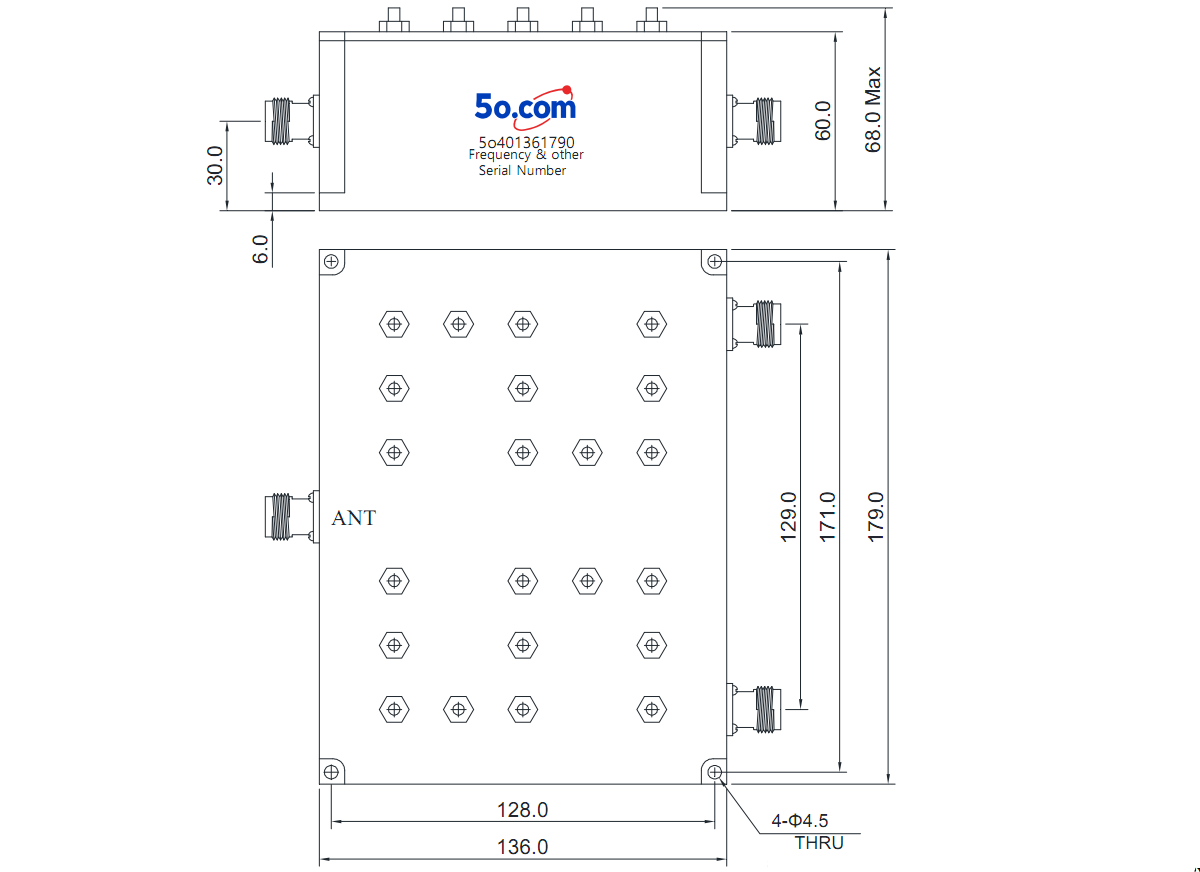

    Overall Dimension(mm)








    Tolerances: ±2% unless otherwise stated.
