    Duplexer 1662 ~ 1667MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector

    Type

    5o40121175016621667NK

    CH1

    1662

    50

    3.0

    1.3

    50

    N Female

    CH2

    1667

    Basic Specifications

    Dimension

    121*175*35mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

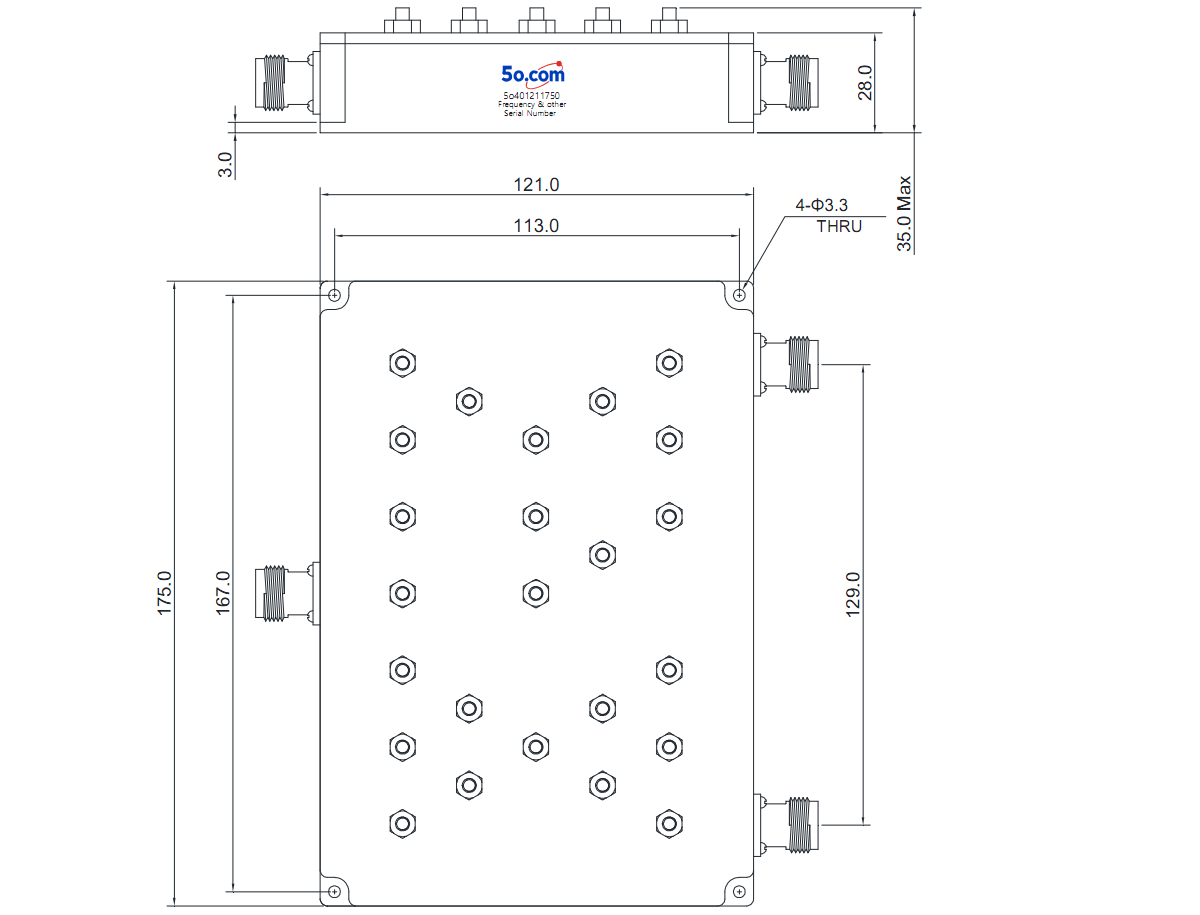

    Overall Dimension(mm)




     Tolerances: ±2% unless otherwise stated.
