    Duplexer 1406 ~ 1678MHz

     Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple
      Max(dB)

    Insertion Loss
      Max(dB)

    Rejection

    VSWR
      Max

    Connector

    Type

    5o40120600

    14061678SK

    CH1

    1406.5 ~ 1463.5

    80

    0.5

    1.0

    40dB @1220MHz

    40dB @1500MHz

    1.3

    SMA Female

    CH2

    1651.5 ~ 1678.5

    40dB @1500MHz

    40dB @1830MHz

    5o40120600

    14061678NK

    CH1

    1406.5 ~ 1463.5

    80

    0.5

    1.0

    40dB @1220MHz

    40dB @1500MHz

    1.3

    N Female

    CH2

    1651.5 ~ 1678.5

    40dB @1500MHz

    40dB @1830MHz

    Basic Specifications

    Dimension

    120*60*37mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -20 ~ +65℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

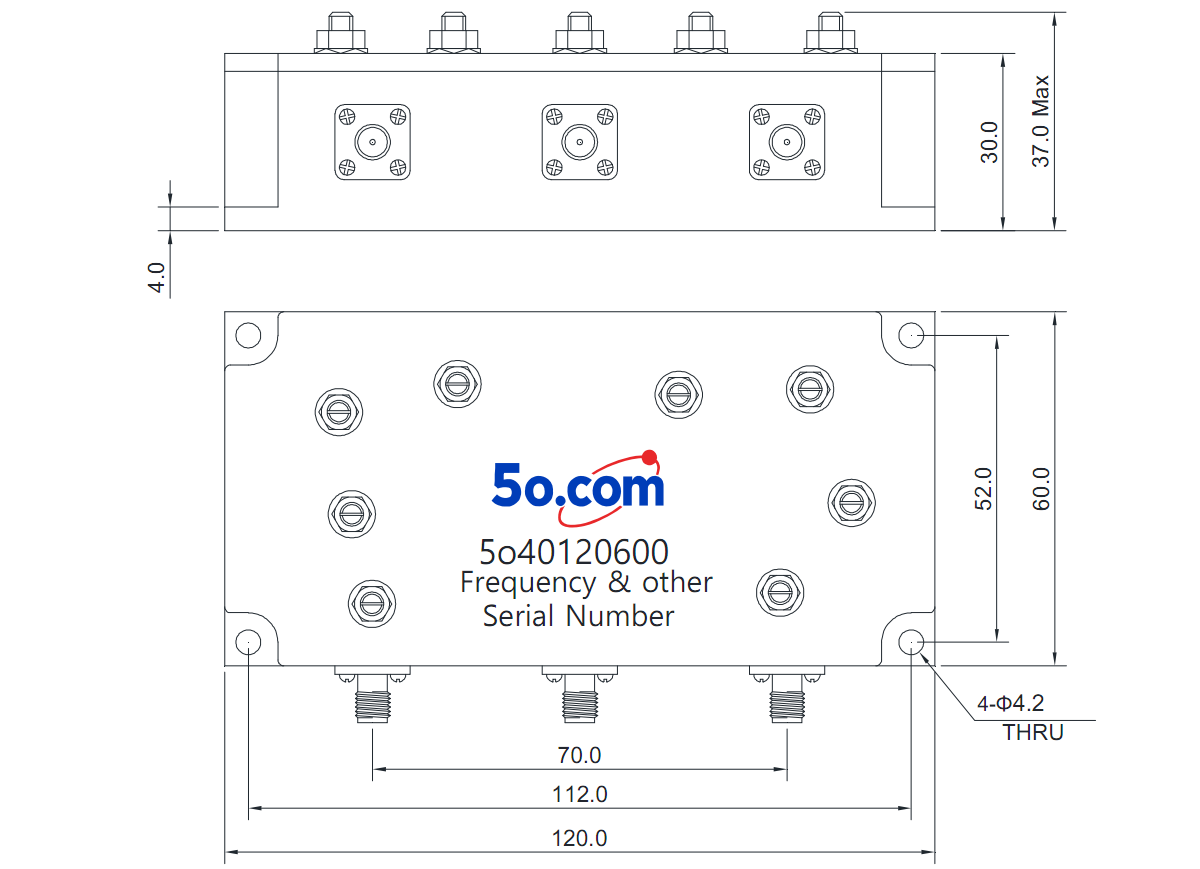

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated
