    Duplexer 1350 ~ 1785MHz

     Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple
      Max(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector

    Type

    5o4011880013501785NK

    CH1

    1350~1518

    60dB @1625~1785MHz

    60dB @2700 ~ 4554MHz

    0.5

    1.0

    1.4

    N Female

    CH2

    1625~1785

    60dB @1350~1518MHz

    60dB @3250 ~ 5355MHz

    5o4011880013501785SK

    CH1

    1350~1518

    60dB @1625~1785MHz

    60dB @2700 ~ 4554MHz

    0.5

    1.0

    1.4

    SMA Female

    CH2

    1625~1785

    60dB @1350~1518MHz

    60dB @3250 ~ 5355MHz

    Basic Specifications

    Dimension

    118*80*43mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -55 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

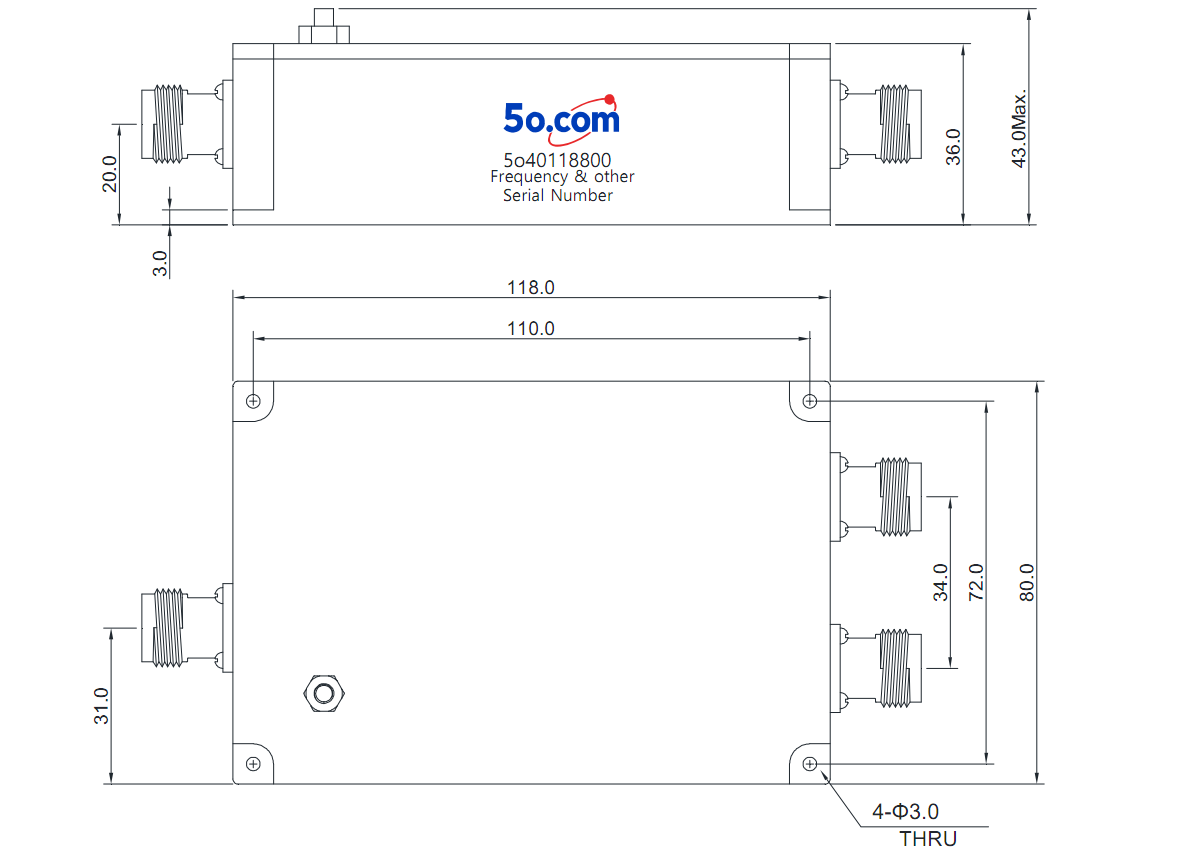

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated
