    Duplexer 2500~ 2690MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency  Range

     (MHz)

    Isolation
      Min(dB)

    Passband Ripple

    Max(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o40107107025002690SK

    CH1

    2500 ~ 2570

    85

    0.8

    1.5

    1.22

    SMA Female

    CH2

    2620 ~ 2690

    5o40107107025002690NK

    CH1

    2500 ~ 2570

    85

    0.8

    1.5

    1.22

    N Female

    CH2

    2620 ~ 2690

    Basic Specifications

    Dimension

    107*107*30mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

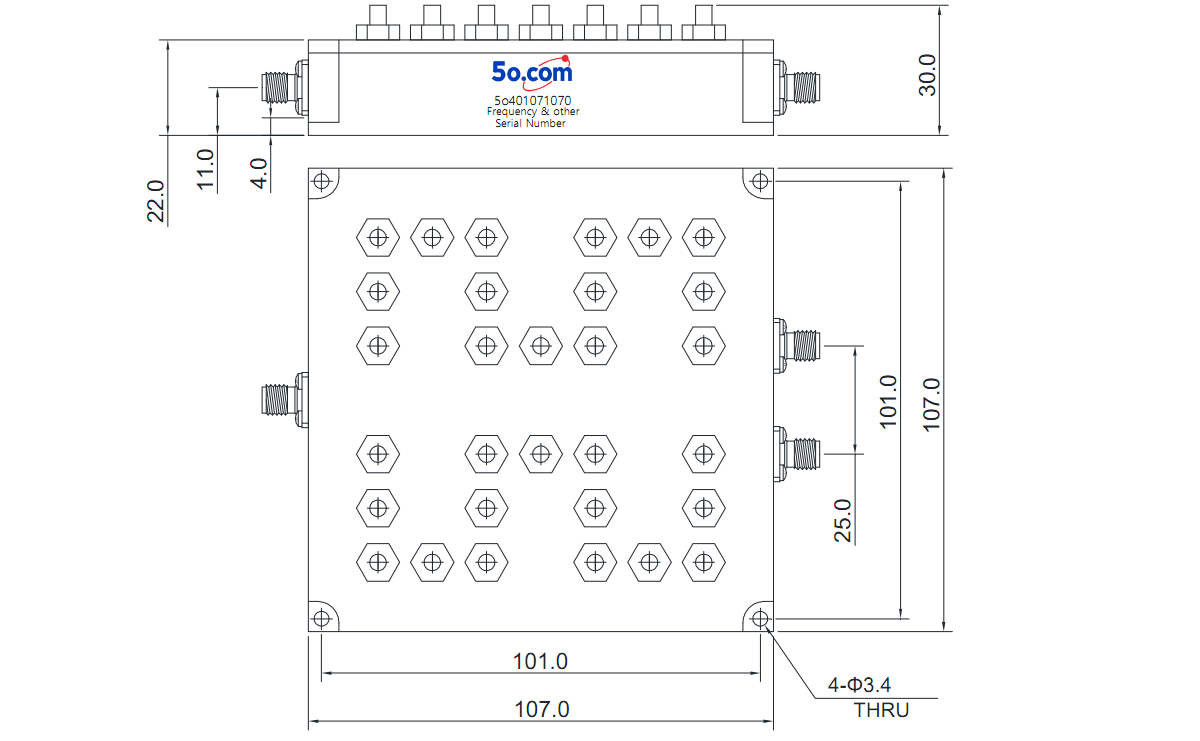

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
