    download 5o401022000

    Duplexer 344 ~ 396MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector Type

    5o401022000344396SK

    CH1

    344 ~ 351

    50

    0.5

    1.0

    1.3

    10

    SMA Female

    CH2

    381 ~ 396

    5o401022000344396NK

    CH1

    344 ~ 351

    50

    0.5

    1.0

    1.3

    10

    N Female

    CH2

    381 ~ 396

    Basic Specifications

    Dimension

    102*200*65mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

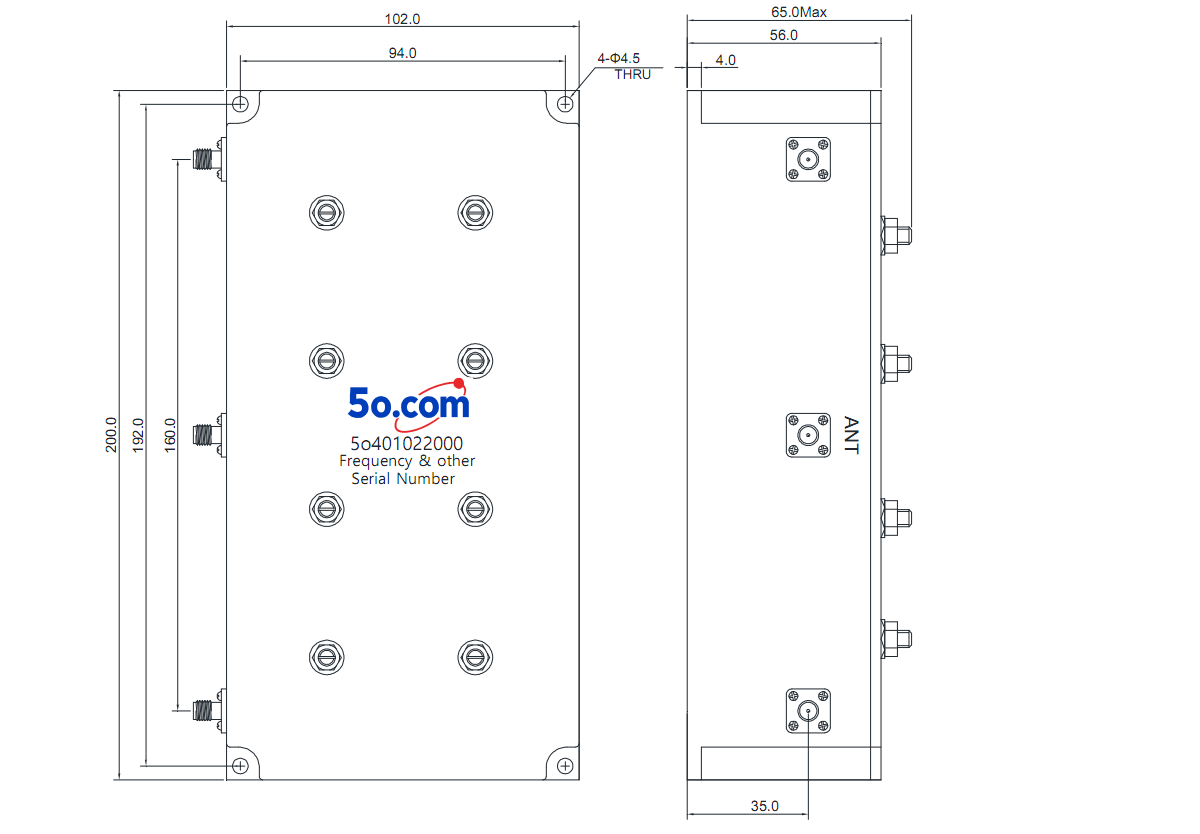

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
