    Duplexer 1920 ~ 2170MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o4010077019202170SK

    CH1

    1920 ~ 1990

    75

    0.3

    0.5

    1.22

    SMA Female

    CH2

    2110 ~ 2170

    0.6

    5o4010077019202170NK

    CH1

    1920 ~ 1990

    75

    0.3

    0.5

    1.22

    N Female

    CH2

    2110 ~ 2170

    0.6

    Basic Specifications

    Dimension

    100*77*38.5mm

    Impedance

    50Ω

    Power

    60W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

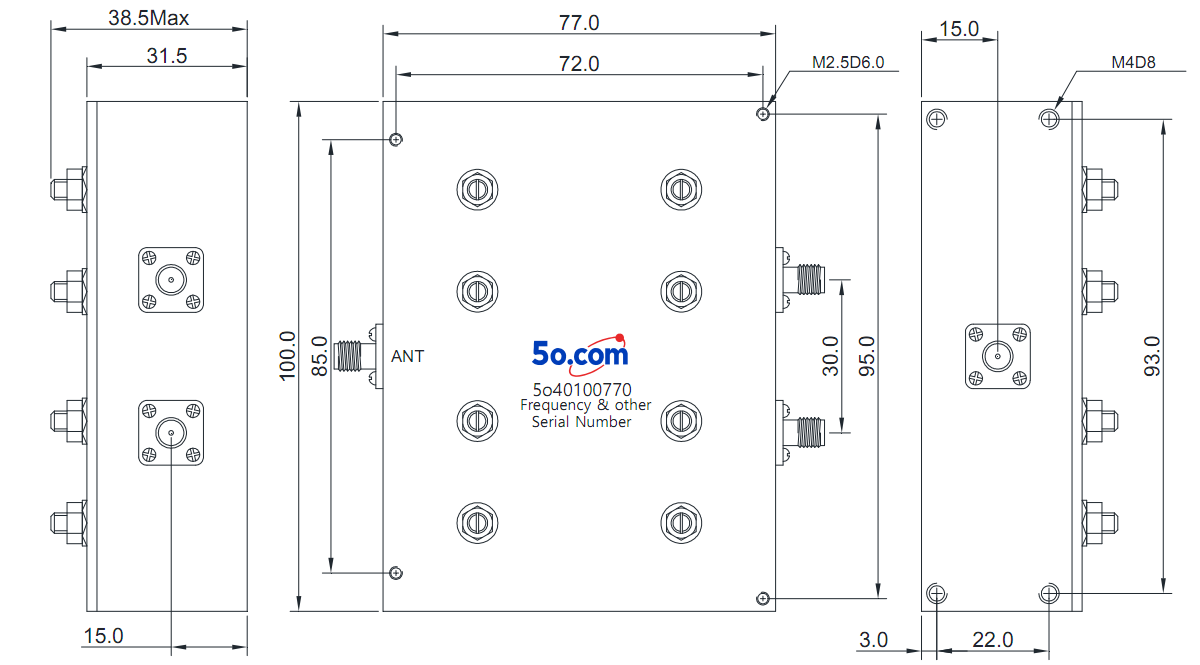

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
