    download 5o40100760

    Duplexer 2700 ~ 3200MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

    (MHz)

    Isolation
      Min(dB)

    InsertionLoss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector Type

    5o4010076027003200SK

    CH1

    3100~3200

    70

    0.7

    1.3

    100

    SMA Female

    CH2

    2700~2900

    5o4010076027003200NK

    CH1

    3100~3200

    70

    0.7

    1.3

    100

    N Female

    CH2

    2700~2900

    Basic Specifications

    Dimension

    100*76*32mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

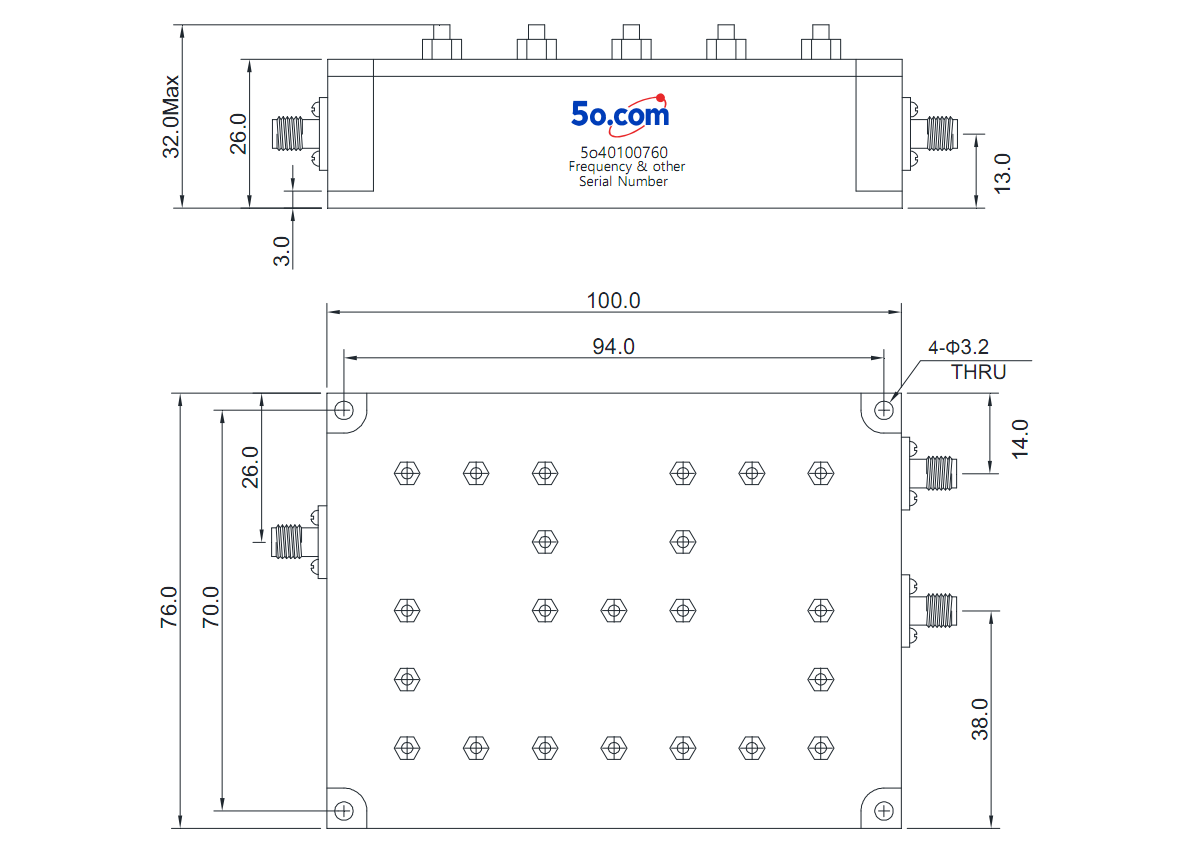

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
