    Duplexer 1710 ~ 1880MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion  Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o4010065017101880SK

    CH1

    1805 ~ 1880

    60

    1.5

    2.0

    1.3

    SMA Female

    CH2

    1710 ~ 1785

    5o4010065017101880NK

    CH1

    1805 ~ 1880

    60

    1.5

    2.0

    1.3

    N Female

    CH2

    1710 ~ 1785

    Basic Specifications

    Dimension

    100*65*32mm

    Impedance

    50Ω

    Power

    5W

    Operating Temperature

    -20 ~ +65℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

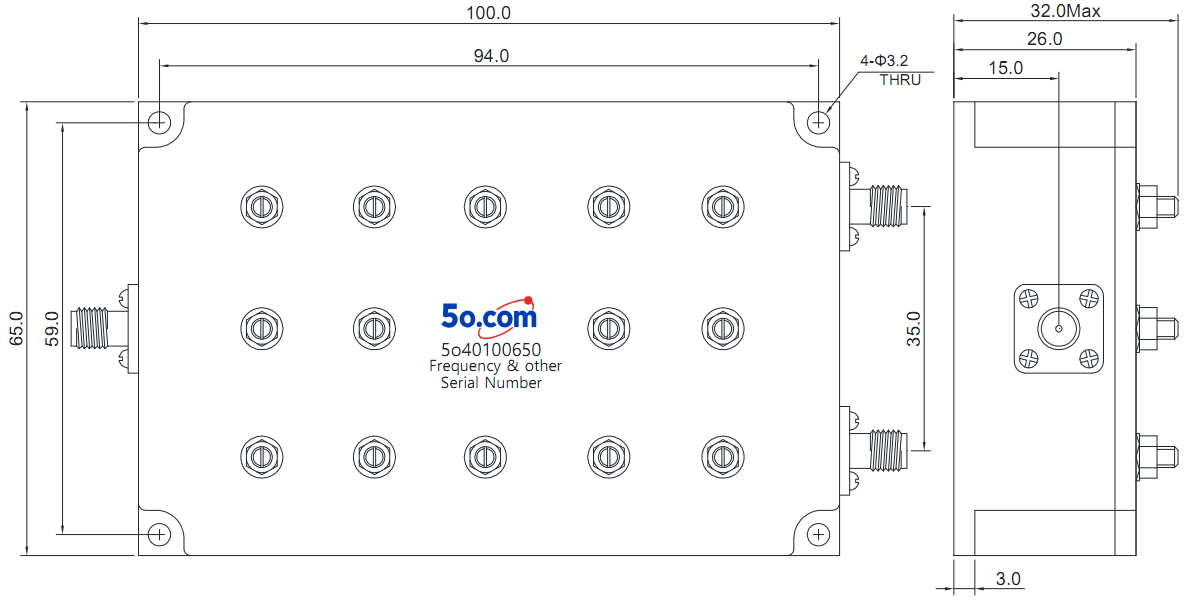

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
