    download 5o401001600

    Duplexer 617 ~ 698MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector Type

    5o401001600617698SK

    CH1

    663 ~ 698

    60

    0.8

    1.5

    1.3

    20

    SMA Female

    CH2

    617 ~ 652

    5o401001600617698NK

    CH1

    663 ~ 698

    60

    0.8

    1.5

    1.3

    20

    N Female

    CH2

    617 ~ 652

    Basic Specifications

    Dimension

    100*160*47mm

    Impedance

    50Ω

    Power

    20W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

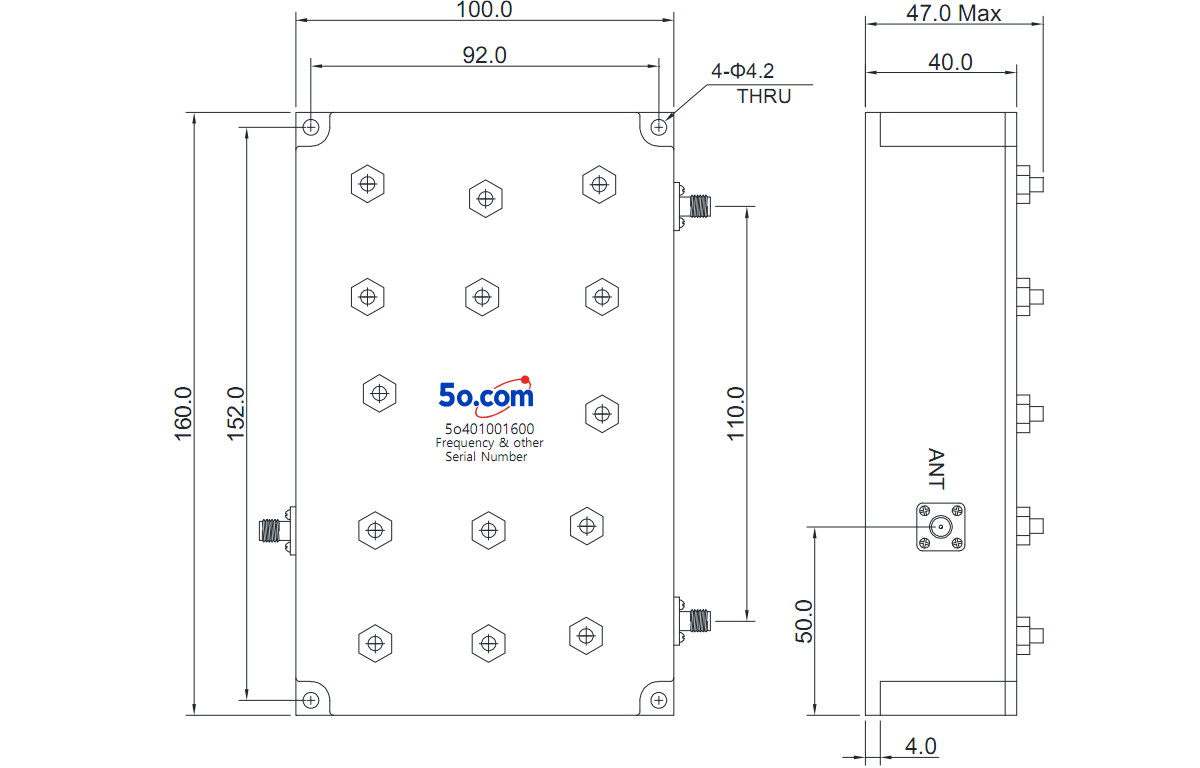

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
