    3 TX 3 RX Transmission & Receiver System 350 ~ 520MHz

     Application

    ▶Wireless communication base stations and antenna feed systems.

    ▶Remote control and Internet of Things devices.

    ▶Military, Space and Commercial applications.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part   Number

    Frequency   Range

     (MHz)

    Isolation
      Min(dB)

    VSWR
      Max


    TX

    RX

    5o3T3R455003200
      40464201NK

    CH1

    417.2375

    404.6000

    25.0dB Min. @TX-TX &   RX-RX     65.0dB Min. @TX-RX &   RX-TX

    1.25:1 Max.

    CH2

    420.1000

    412.9250

    25.0dB Min. @TX-TX &   RX-RX     65.0dB Min. @TX-RX &   RX-TX

    1.25:1 Max.

    CH3

    422.7775

    413.9525

    25.0dB Min. @TX-TX &   RX-RX     65.0dB Min. @TX-RX &   RX-TX

    1.25:1 Max.

    5o3T3R455003200
      41014222NK

    CH1

    420.1000

    410.1000

    25.0dB Min. @TX-TX &   RX-RX     65.0dB Min. @TX-RX &   RX-TX

    1.25:1 Max.

    CH2

    421.9250

    411.9250

    25.0dB Min. @TX-TX &   RX-RX     65.0dB Min. @TX-RX &   RX-TX

    1.25:1 Max.

    CH3

    422.2375

    412.2375

    25.0dB Min. @TX-TX &   RX-RX     65.0dB Min. @TX-RX &   RX-TX

    1.25:1 Max.

    Basic Specifications

    Insertion Loss

    8.5dB Max. @TX-ANT & ANT-RX

    Number of   Channels

    N Female @3xTX  N Female @3xRX  N Female @1xANT

    Input Power

    50W/CH

    Receiver Multicoupler Amp

    No

    Weight

    ~12.5 Kg

    Dimension

    500*320*100mm

    Appearance color

    Black

    Operating Temp

    -30~+75℃

    Storage temperature

    -55~+125℃

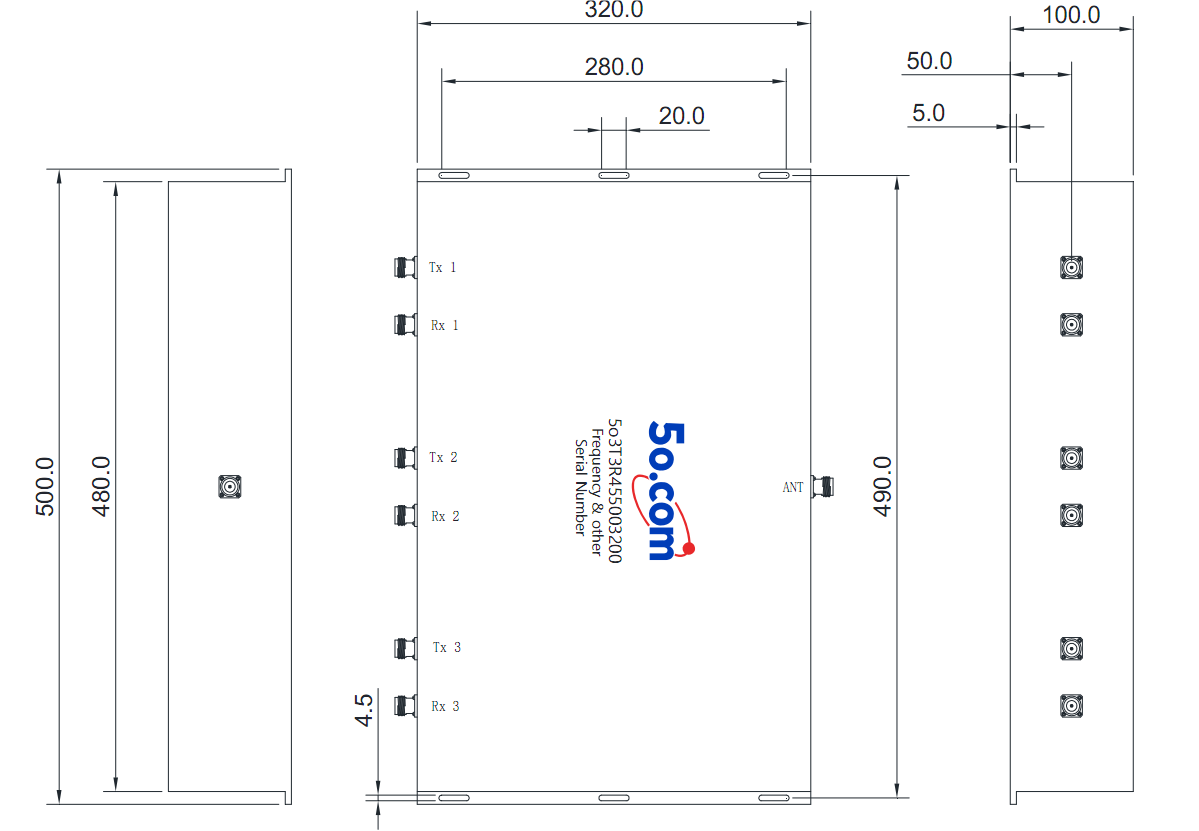

     Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
