    3 way Combiner / Hybrid Coupler 136 ~174MHz

    Application



    ▶Multi-system shared antenna feed system..

    ▶Base station and repeater system.

    ▶Indoor distribution system.

    ▶Radio intercom system.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    Isolation
      Min(dB)

    VSWR
      Max

    Connector

    Type

    Power(W)

    5o3T150304800136174NK

    136 ~ 174

    0.9

    (Coupling 4.8dB)

    20

    1.3

    N Female

    200(3x66)

    5o3T150304800136174SK

    136 ~ 174

    0.9

    (Coupling 4.8dB)

    20

    1.3

    SMA Female

    100(3x33)

    Basic Specifications

    Dimension

    304*80*50mm

    Operating   Temperature

    -40 ~ +85℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

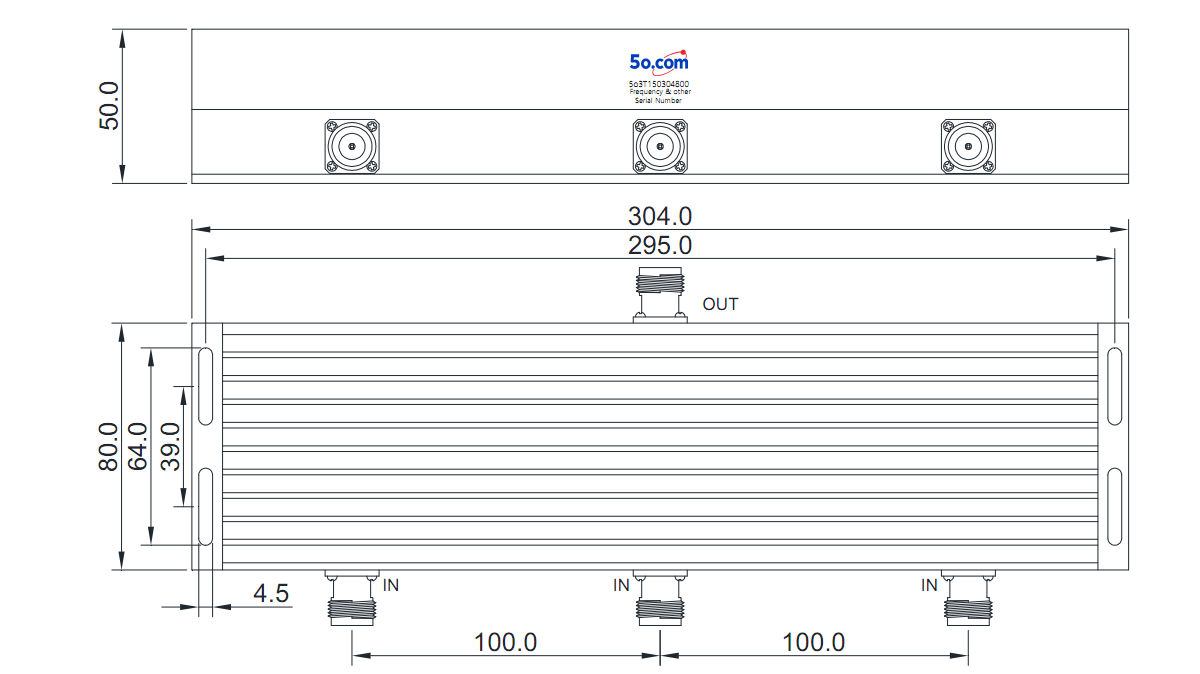

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
