16 Way Power Divider 0.4-6.0GHz 5o362351400

16 Way Power Divider 400 ~6000MHz

Application

▶Wireless communication system.

▶Radar and satellite systems.

▶It supports a one-year standard warranty.

▶Military, Space and Commercial applications.

▶Testing and measuring equipment.

RF Characteristics

Part Number

Frequency Range (GHz)

Isolation

Min(dB)

VSWR

Input

Max

VSWR Output Max

Insertion

Loss

Max(dB)

Phase Unbalance

Amplitude Unbalance

Connector

Type

5o3623514004004000SK

0.4 ~ 4.0

18

1.8

1.3

2.5(Split 12dB)

±15˚

±1.5dB

SMA Female

5o3623514005006000SK

0.5 ~ 6.0

18

1.6

1.5

5.5(Split 12dB)

±15˚

±1.0dB

SMA Female

Basic Specifications

Dimension	23514012mm	Impedance	50Ω
Splitter Power	10W	Operating Temperature	-55 ~ +85℃
Combiner Power	3W	Storage Temperature	-55~+125℃

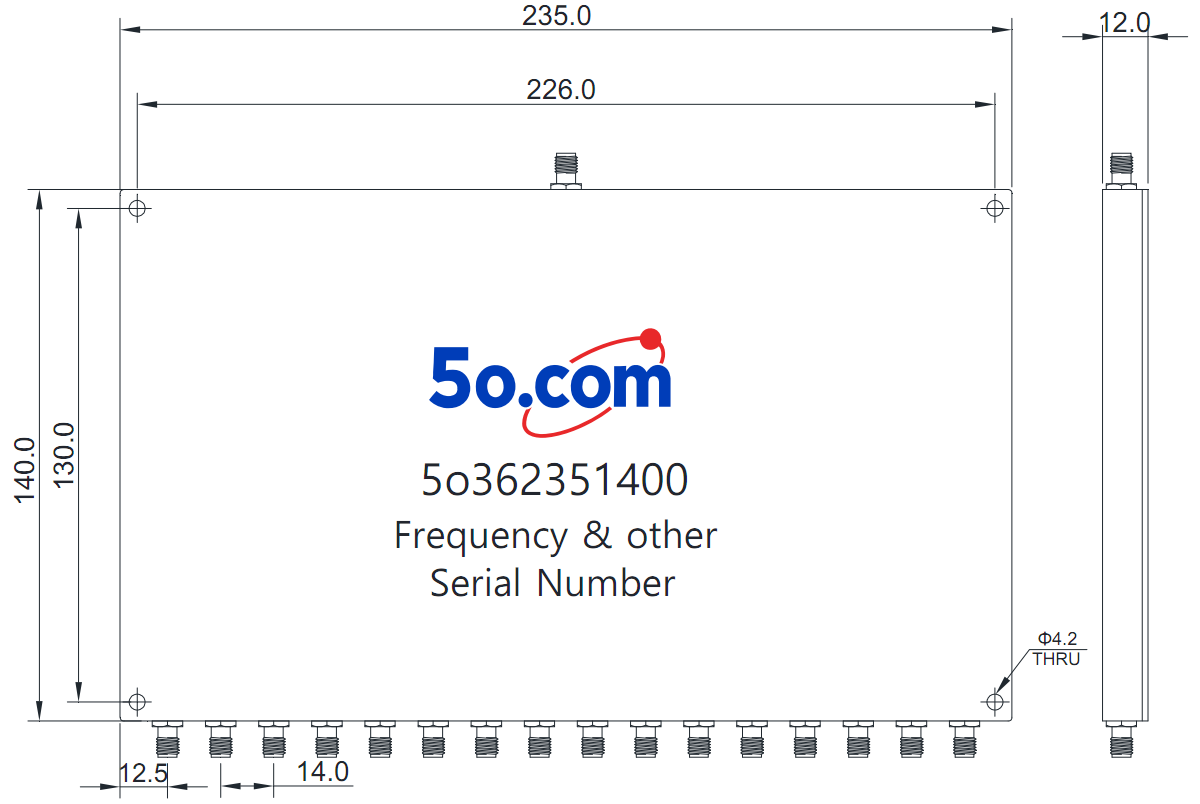

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
