    16 Way Power Divider 700 ~3000MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.




    RF Characteristics

    Part Number

    Frequency Range



    (MHz)

    Isolation

    Min(dB)

    VSWR

    Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector Type

    5o362239307003000SK

    700 ~ 3000

    18

    1.5

    2.5(Split 12)

    ±15˚

    ±0.8dB

    SMA Female

    Basic Specifications

    Dimension

    223*93*12mm

    Impedance

    50Ω

    Splitter Power

    40W

    Operating   Temperature

    -55 ~ +85℃

    Combiner Power

    3W

    Storage Temperature

    -55 ~+125℃

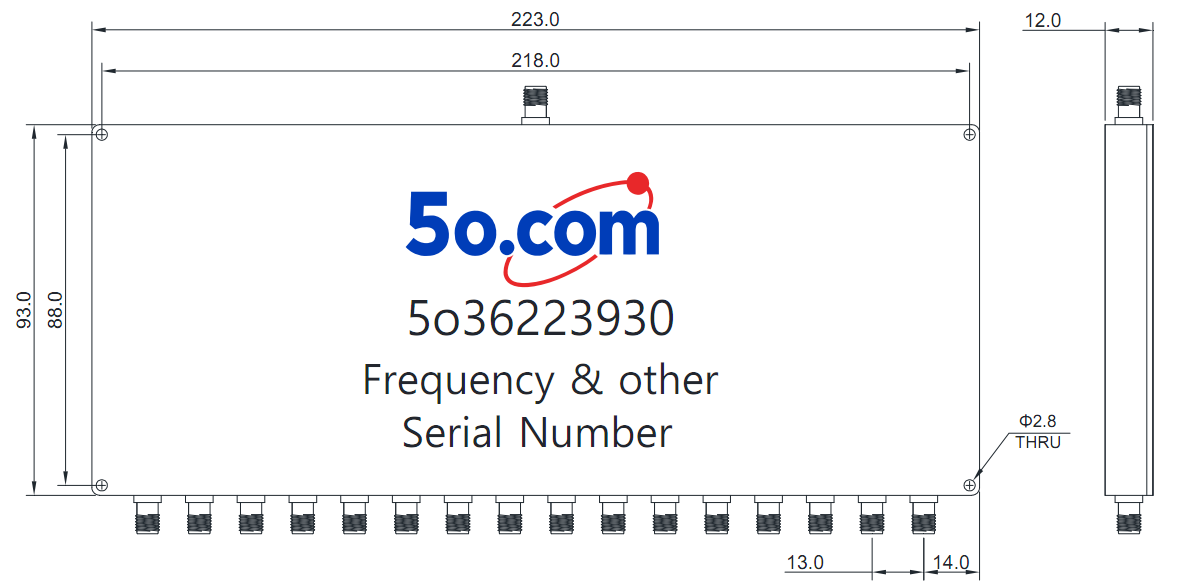

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
