    16 Way Power Divider 2.0 ~18.0GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.




    RF Characteristics

    Part Number

    Frequency Range

    (GHz)

    Isolation

    Min(dB)

    VSWR Input

    Max

    VSWR Output

    Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector Type

    5o362151200218SK

    2.0 ~ 18.0

    15

    2

    1.5

    5.8 (Split  12dB)

    ±20˚

    ±1.5dB

    SMA Female

    Basic Specifications

    Dimension

    215*120*10mm

    Impedance

    50Ω

    Splitter Power

    10W

    Operating   Temperature

    -55 ~ +85℃

    Combiner Power

    3W

    Storage Temperature

    -55 ~+125℃

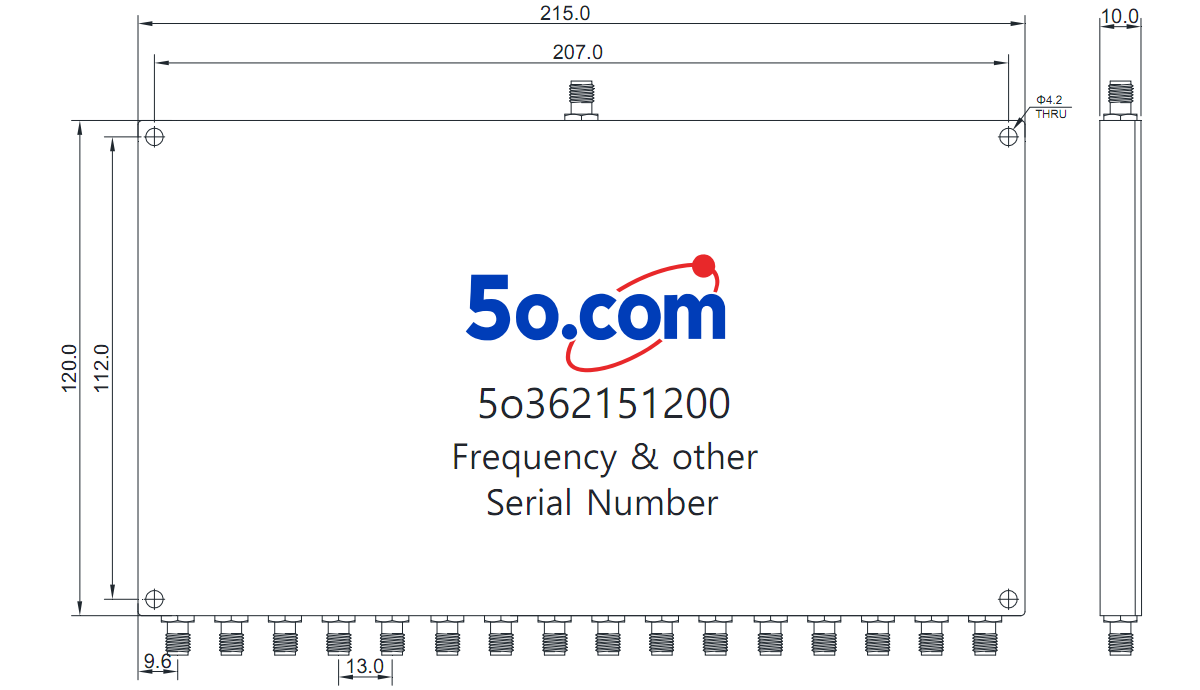

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
