    8 Way Power Divider 136 ~960MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR

    Max

    Insertion

    Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o342601590136T520SK

    136 ~ 520

    18

    1.35

    1.1(Split 9dB)

     ±3˚

     ±0.8dB

    SMA Female

    5o342601590136T520NK

    136 ~ 520

    18

    1.35

    1.1(Split 9dB)

     ±3˚

     ±0.8dB

    N Female

    5o342601590136T960NK

    136 ~ 960

    18

    1.35

    1.1(Split 9.1dB)

     ±3˚

     ±0.8dB

    SMA Female

    5o342601590136T960SK

    136 ~ 960

    18

    1.35

    1.1(Split 9.1dB)

     ±3˚

     ±0.8dB

    N Female

    Basic Specifications

    Dimension

    260*159*21mm

    Impedance

    50Ω

    Splitter   Power

    50W

    Operating   Temperature

    -40 ~ +85℃

    Combiner   Power

    2W

    Storage Temperature

    -55~+125℃

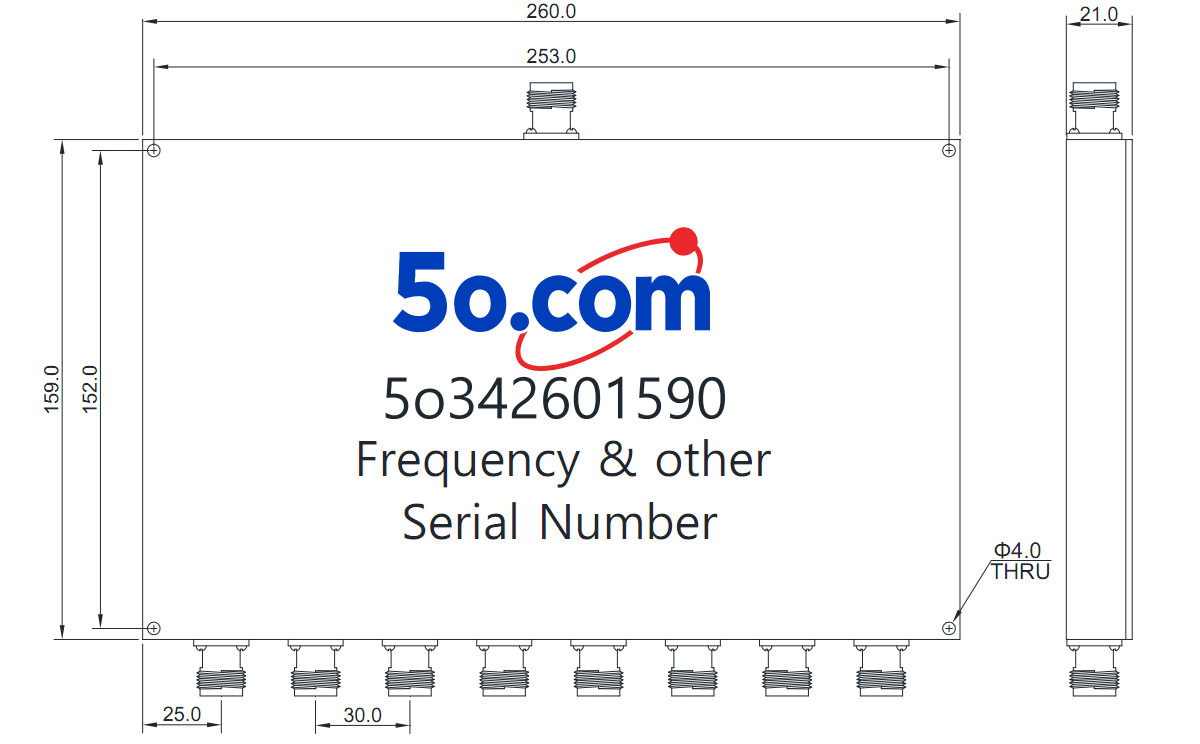

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
