8 Way Power Divider 698 to 2700MHz 5o341991060

8 Way Power Divider 698 ~2700MHz

Application

▶Wireless communication system.

▶Radar and satellite systems.

▶It supports a one-year standard warranty.

▶Military, Space and Commercial applications.

▶Testing and measuring equipment.

RF Characteristics

Part Number	Frequency Range (MHz)	Isolation Min(dB)	VSWR Max	Insertion Loss Max(dB)	Phase Unbalance	Amplitude Unbalance	Connector Type
5o341991060698T2700NK	698 ~ 2700	16	1.35	1.2(Split 9dB)	±5˚	±0.8dB	N Female
5o341991060698T2700SK	698 ~ 2700	16	1.35	1.2(Split 9dB)	±5˚	±0.8dB	SMA Female
5o341991060800T2500NK	800 ~ 2500	16	1.35	1.2(Split 9dB)	±5˚	±0.8dB	N Female
5o341991060800T2500SK	800 ~ 2500	16	1.35	1.2(Split 9dB)	±5˚	±0.8dB	SMA Female
5o341991060800T2700NK	800 ~ 2700	16	1.35	1.2(Split 9dB)	±5˚	±0.8dB	N Female
5o341991060800T2700SK	800 ~ 2700	16	1.35	1.2(Split 9dB)	±5˚	±0.8dB	SMA Female

Basic Specifications

Dimension	199106.221.5mm	Impedance	50Ω
Splitter Power	50W	Operating Temperature	-40 ~ +85℃
Combiner Power	2W	Storage Temperature	-55~+125℃

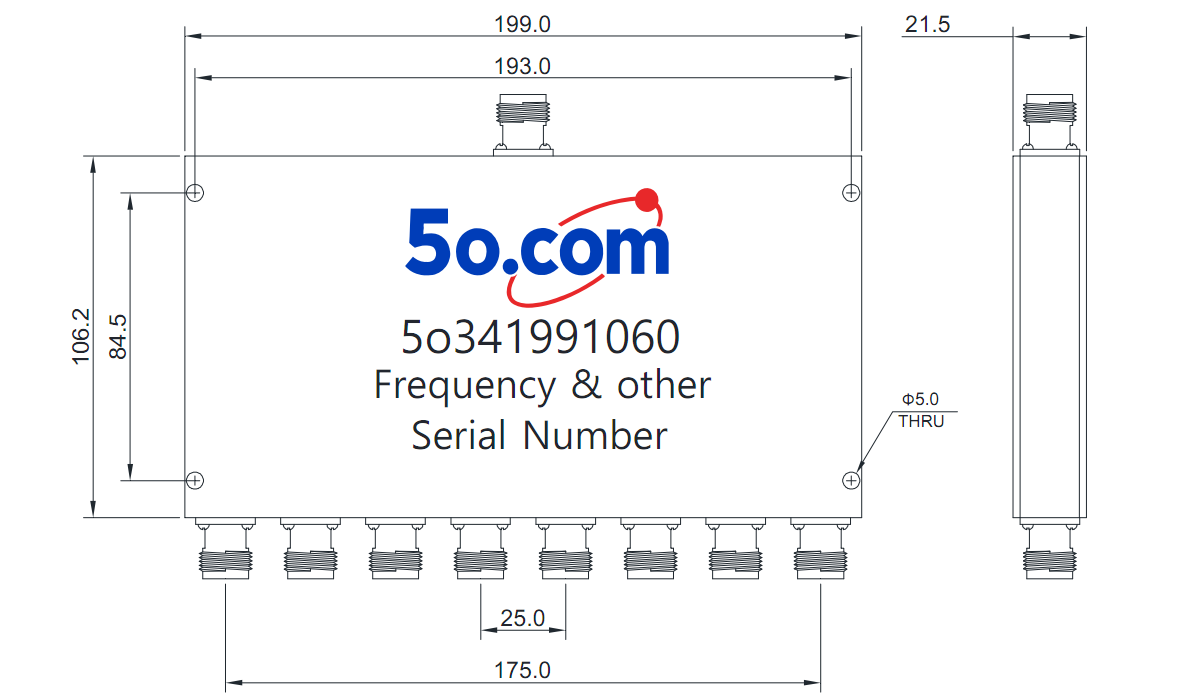

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
