    8 Way Power Divider 5 ~ 1000MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.


    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    VSWR Output Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o341225605T1000SK

    5 ~ 1000

    18

    1.4

    1.3

    2.5(Split   6dB)

    ±4°

    ±0.5dB

    SMA Female

    Basic Specifications

    Dimension

    122*56*12mm

    Impedance

    50Ω

    Splitter Power

    10W

    Operating Temperature

    -40 ~ +85℃

    Combiner Power

    1W

    Storage Temperature

    -55 ~ +125℃

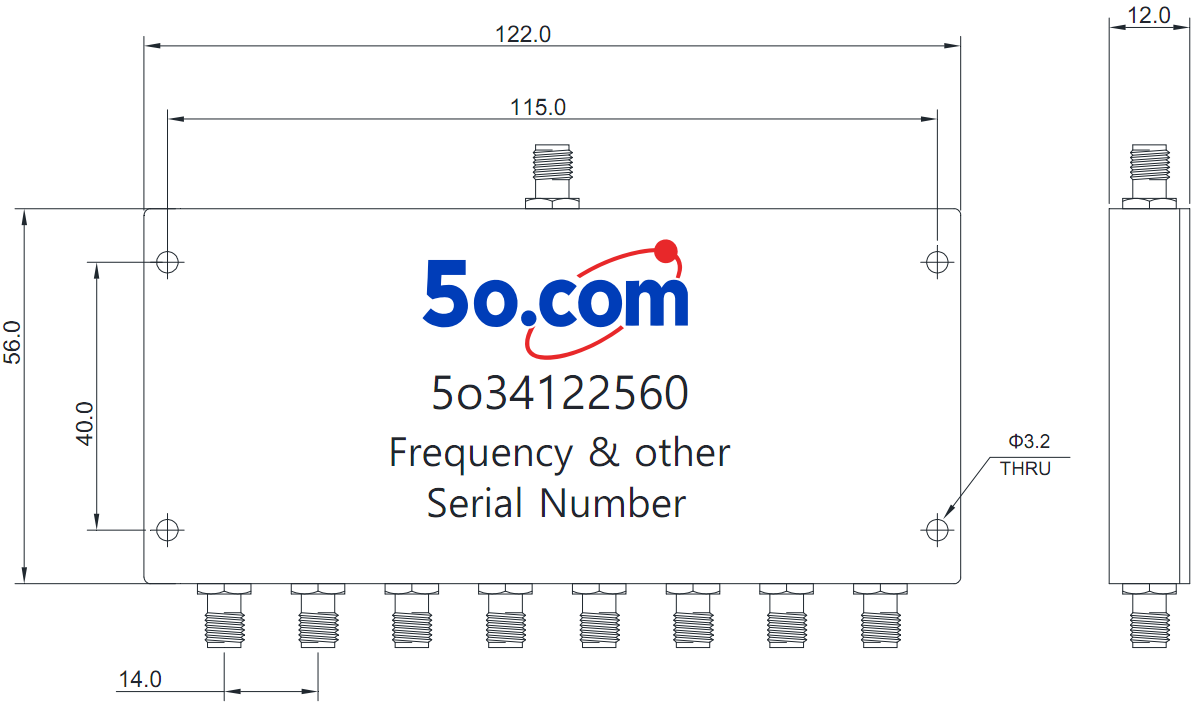

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
