    8 Way Power Divider 18.0 ~40.0GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    VSWR Output Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o3410440018T40KK

    18.0~ 40.0

    15

    1.9

    1.8

    3.5(Split   9dB)

    ±15˚

    ±1dB

    2.92mm Female

    Basic Specifications

    Dimension

    104*40*10mm

    Impedance

    50Ω

    Splitter   Power

    10W

    Operating   Temperature

    -55 ~ +85℃

    Combiner   Power

    3W

    Storage Temperature

    -55~+125℃

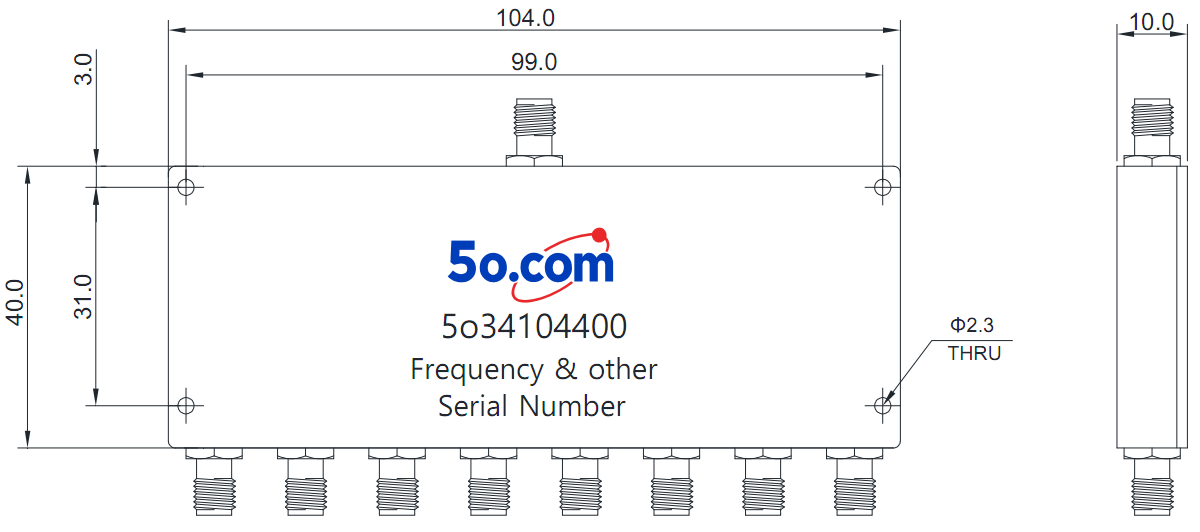

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
