Part Number

Frequency Range (GHz)

Isolation

Min(dB)

VSWR   Input

Max

VSWR   Output

Max

Insertion Loss

Max(dB)

Phase Unbalance

Amplitude Unbalance

Connector

Type

5o339452028SK

2.0 ~ 8.0

20

1.4

1.3

1.2(Split 6dB)

±5˚

±0.4dB

SMA Female

5o339452028NK

2.0 ~ 8.0

15

1.6

1.5

2.0(Split 6dB)

±8˚

±0.8dB

N Female

5o339452028NJNK

2.0 ~ 8.0

15

1.6

1.5

2.2(Split 6dB)

±8˚

±0.8dB

N Male to N Female

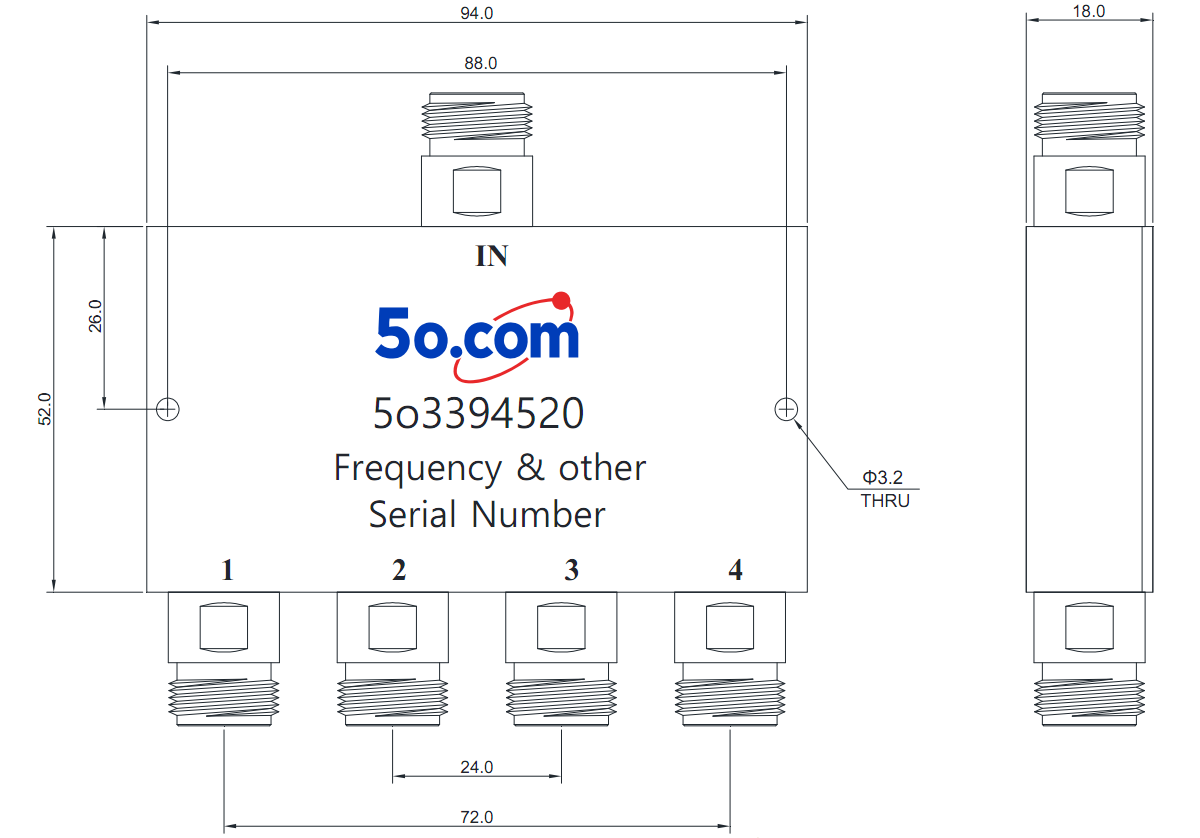

Dimension

94*52*18mm

Impedance

50Ω

Splitter   Power

30W

Operating   Temperature

-55 ~ +85℃

Combiner   Power

3W

Storage Temperature

-55~+125℃
