    4 Way Power Divider 5 ~ 1000MHz


    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    VSWR

    Output

    Max

    Insertion

    Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o337240051000SK

    5 ~ 1000

    20

    1.4

    1.25

    1.8

    (Split 6dB)

    ±6˚

    ±1.0dB

    SMA Female

    Basic Specifications

    Size (mm)

    72*40*12

    Impedance

    50Ω

    Splitter Power(W)

    0.5

    Operating Temp

    -45 ~ +85℃

    Combiner Power(W)

    0.375

    Storage temperature

    -55~+125℃

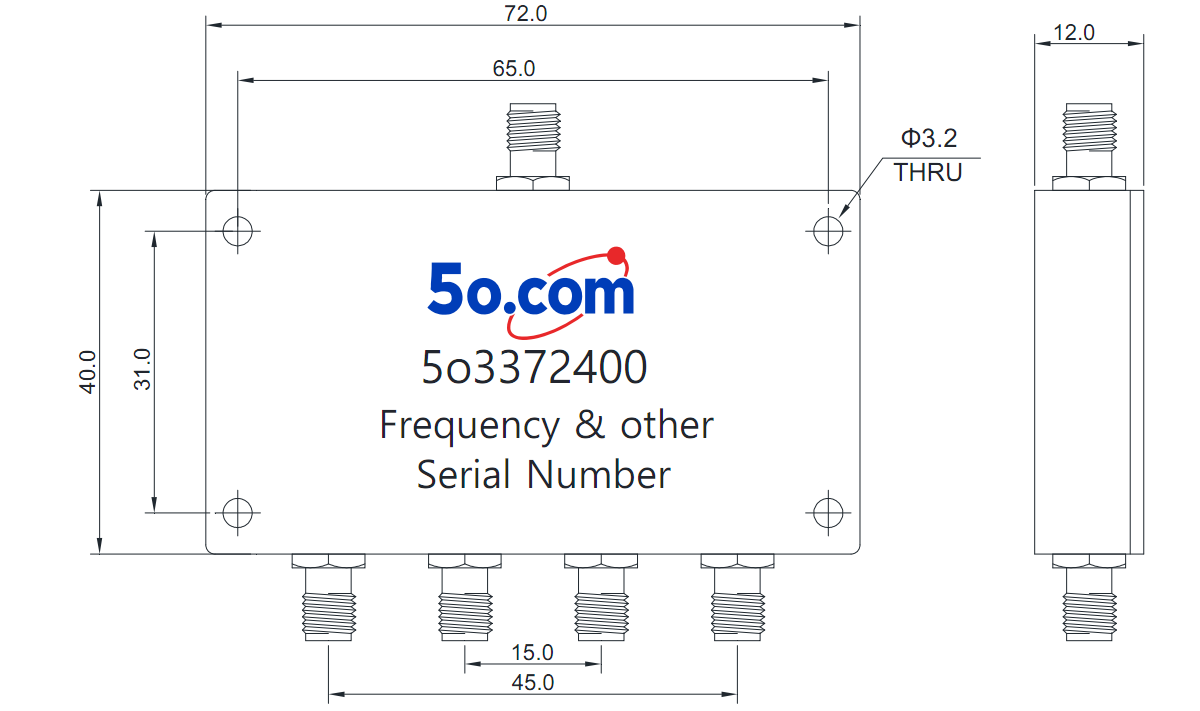

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
