    4 Way Power Divider 2.0 ~ 8.0GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    VSWR Output Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o335245028SK

    2.0 ~ 8.0

    25

    1.25

    1.2

    0.8    (Split   6dB)

    ±4˚

    ±0.3dB

    SMA Female

    Basic Specifications

    Dimension

    52*45*10mm

    Impedance

    50Ω

    Splitter   Power

    30W

    Operating   Temperature

    -55 ~ +85℃

    Combiner   Power

    2W

    Storage Temperature

    -55~+125℃

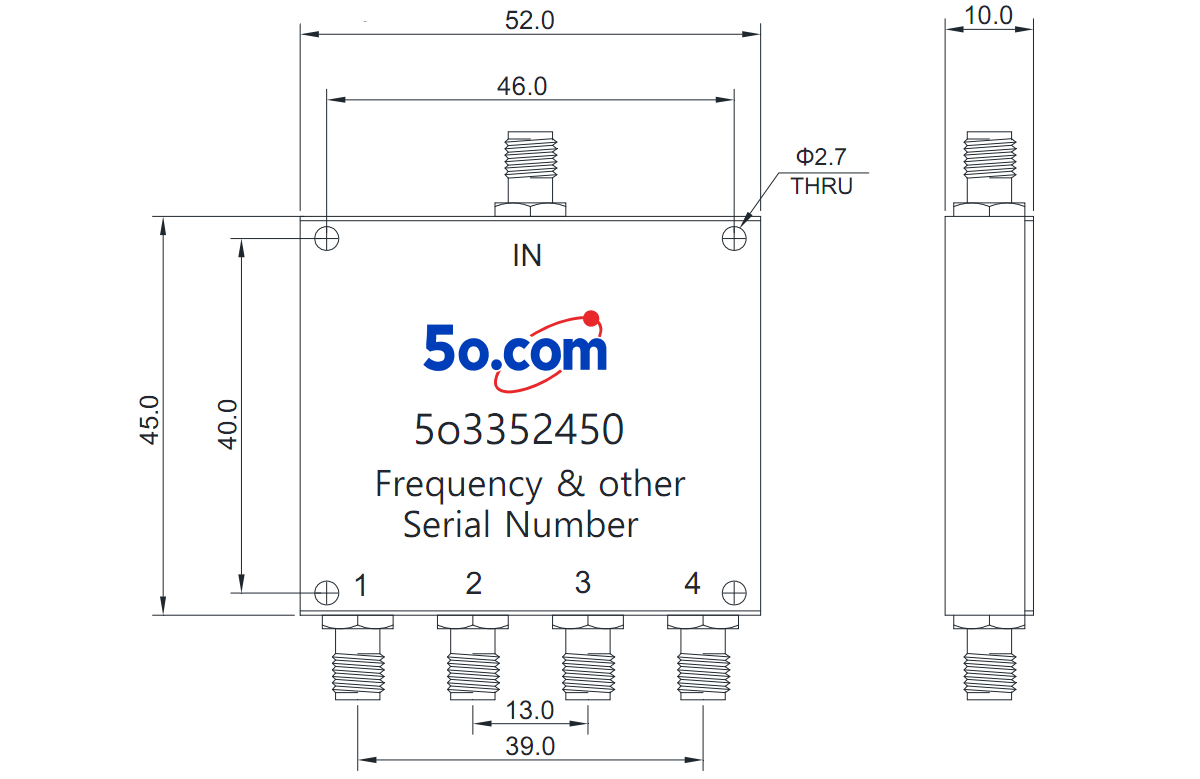

    Overall Dimension(mm)








    Tolerances: ±2% unless otherwise stated.
