4 Way Power Divider 136 to 960MHz 5o332201620

4 Way Power Divider 136 ~960MHz

Application

▶Wireless communication system.

▶Radar and satellite systems.

▶It supports a one-year standard warranty.

▶Military, Space and Commercial applications.

▶Testing and measuring equipment.

RF Characteristics

Part Number

Frequency Range (MHz)

Isolation

Min(dB)

VSWR

Max

Insertion Loss

Max(dB)

Phase Unbalance

Amplitude Unbalance

Connector

Type

5o332201620136960NK

136 ~ 960

20

1.3

1.0(Split 6.0dB)

±3˚

±0.8dB

N Female

5o332201620136960SK

136 ~ 960

20

1.3

1.0(Split 6.0dB)

±3˚

±0.8dB

SMA Female

Basic Specifications

Dimension	22016221mm	Impedance	50Ω
Splitter Power	50W	Operating Temperature	-40 ~ +85℃
Combiner Power	2W	Storage Temperature	-55~+125℃

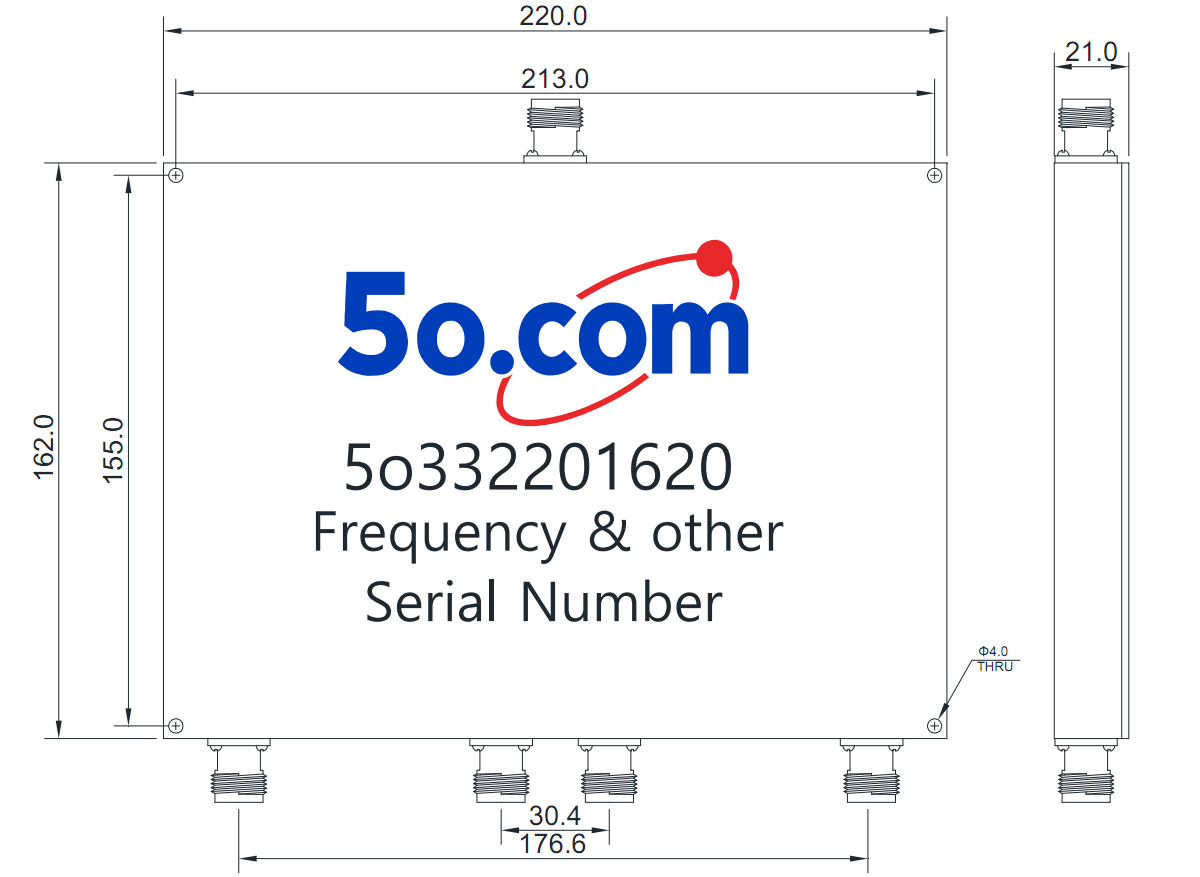

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
