    4 Way Power Divider 136 ~520MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o331361190136174NK

    136 ~ 174

    18

    1.3

    0.6(Split 6dB)

    ±3˚

    ±0.5dB

    N Female

    5o331361190136174SK

    136 ~ 174

    18

    1.3

    0.6(Split 6dB)

    ±3˚

    ±0.5dB

    SMA Female

    5o331361190136520NK

    136 ~ 520

    18

    1.35

    0.6(Split 6dB)

    ±3˚

    ±0.5dB

    N Female

    5o331361190136520SK

    136 ~ 520

    18

    1.35

    0.6(Split 6dB)

    ±3˚

    ±0.5dB

    SMA Female

    Basic Specifications

    Dimension

    136.4*119*23mm

    Impedance

    50Ω

    Splitter   Power

    50W

    Operating   Temperature

    -40 ~ +85℃

    Combiner   Power

    2W

    Storage Temperature

    -55~+125℃

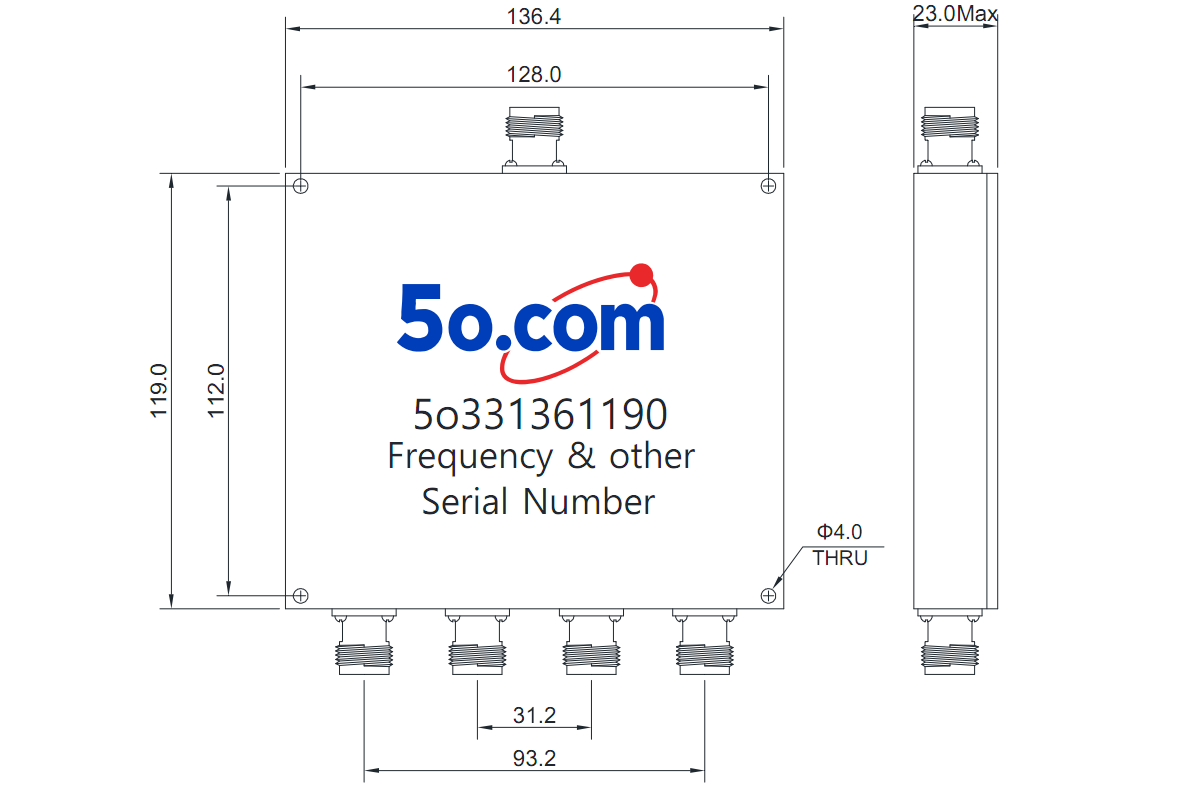

    Overall Dimension(mm)



           Tolerances: ±2% unless otherwise stated.
