3 Way Power Divider 136 to 520MHz 5o32120711

3 Way Power Divider 136 ~ 520MHz

Application

▶Wireless communication system.

▶Radar and satellite systems.

▶It supports a one-year standard warranty.

▶Military, Space and Commercial applications.

▶Testing and measuring equipment.

RF Characteristics

Part Number	Frequency Range (MHz)	Isolation Min(dB)	VSWR Max	Insertion Loss Max(dB)	Phase Unbalance	Amplitude Unbalance	Connector Type
5o32120711136174NK	136 ~ 174	18	1.3	0.5(Split 4.8dB)	±3˚	±0.4dB	N Female
5o32120711136174SK	136 ~ 174	18	1.3	0.5(Split 4.8dB)	±3˚	±0.4dB	SMA Female
5o32120711136520NK	136 ~ 520	18	1.4	0.5(Split 4.8dB)	±3˚	±0.4dB	N Female
5o32120711136520SK	136 ~ 520	18	1.4	0.5(Split 4.8dB)	±3˚	±0.4dB	SMA Female

Basic Specifications

Dimension	1207121mm	Impedance	50Ω
Splitter Power	50W	Operating Temperature	-40 ~ +85℃
Combiner Power	2W	Storage Temperature	-55~+125℃

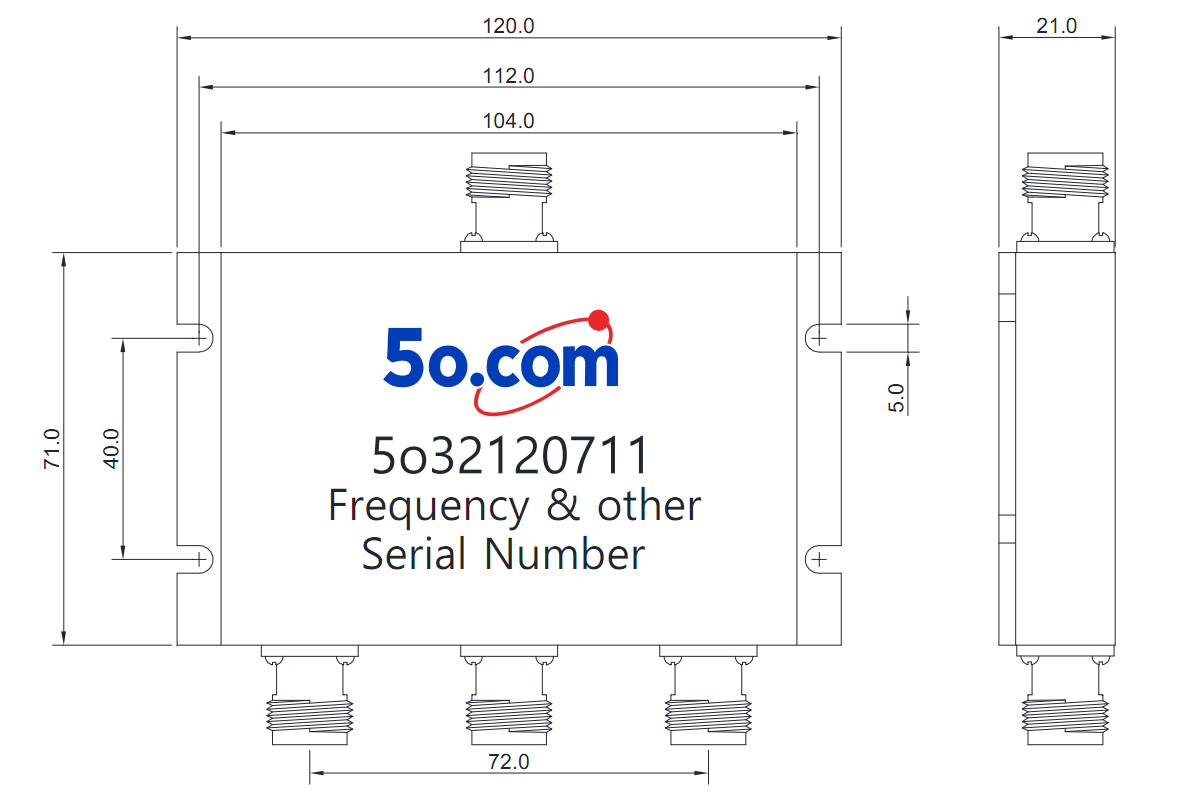

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
