    3 Way Power Divider 698 ~ 2700MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR

    Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o321207106982700NK

    698 ~ 2700

    19

    1.3

    0.5(Split 4.8dB)

    ±5˚

    ±0.4dB

    N Female

    5o321207106982700SK

    698 ~ 2700

    19

    1.3

    0.5(Split 4.8dB)

    ±5˚

    ±0.4dB

    SMA Female

    5o321207108002500NK

    800 ~ 2500

    19

    1.3

    0.5(Split 4.8dB)

    ±5˚

    ±0.4dB

    N Female

    5o321207108002500SK

    800 ~ 2500

    19

    1.3

    0.5(Split 4.8dB)

    ±5˚

    ±0.4dB

    SMA Female

    Basic Specifications

    Dimension

    120*71*21mm

    Impedance

    50Ω

    Splitter   Power

    50W

    Operating   Temperature

    -40 ~ +85℃

    Combiner   Power

    2W

    Storage Temperature

    -55~+125℃

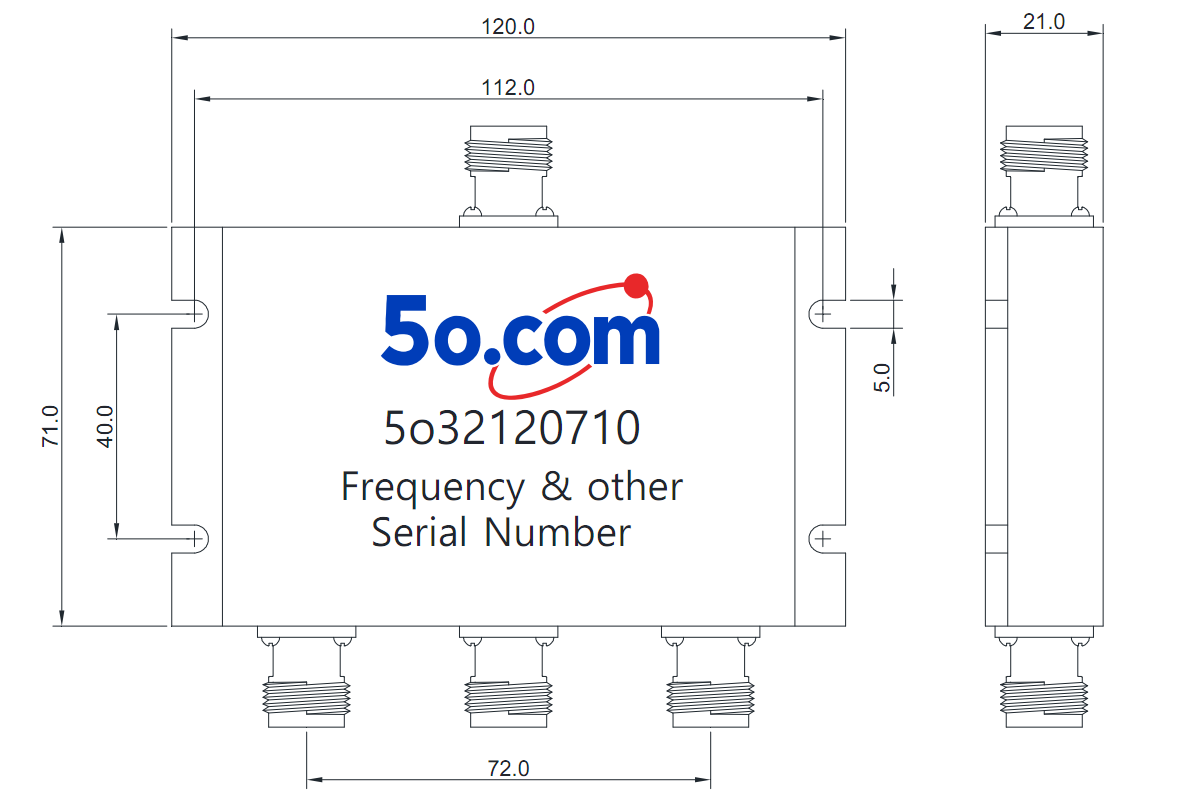

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
