    2 Way Power Divider 698 ~2700MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR

    Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o31886006982700SK

    698 ~ 2700

    20

    1.25

    0.5(Split 3dB)

    ±5˚

    ±0.4dB

    SMA Female

    5o31886006982700NK

    698 ~ 2700

    20

    1.25

    0.5(Split 3dB)

    ±5˚

    ±0.4dB

    N Female

    5o31886006982700BK

    698 ~ 2700

    20

    1.25

    0.5(Split 3dB)

    ±5˚

    ±0.4dB

    BNC Female

    5o31886008002500SK

    800 ~ 2500

    20

    1.25

    0.5(Split 3dB)

    ±5˚

    ±0.4dB

    SMA Female

    5o31886008002500NK

    800 ~ 2500

    20

    1.25

    0.5(Split 3dB)

    ±5˚

    ±0.4dB

    N Female

    5o31886008002500BK

    800 ~ 2500

    20

    1.25

    0.5(Split 3dB)

    ±5˚

    ±0.4dB

    BNC Female

    Basic Specifications

    Dimension

    88*60*21mm

    Impedance

    50Ω

    Splitter Power

    50W

    Operating Temperature

    -40 ~ +85℃

    Combiner Power

    2W

    Storage Temperature

    -55~+125℃

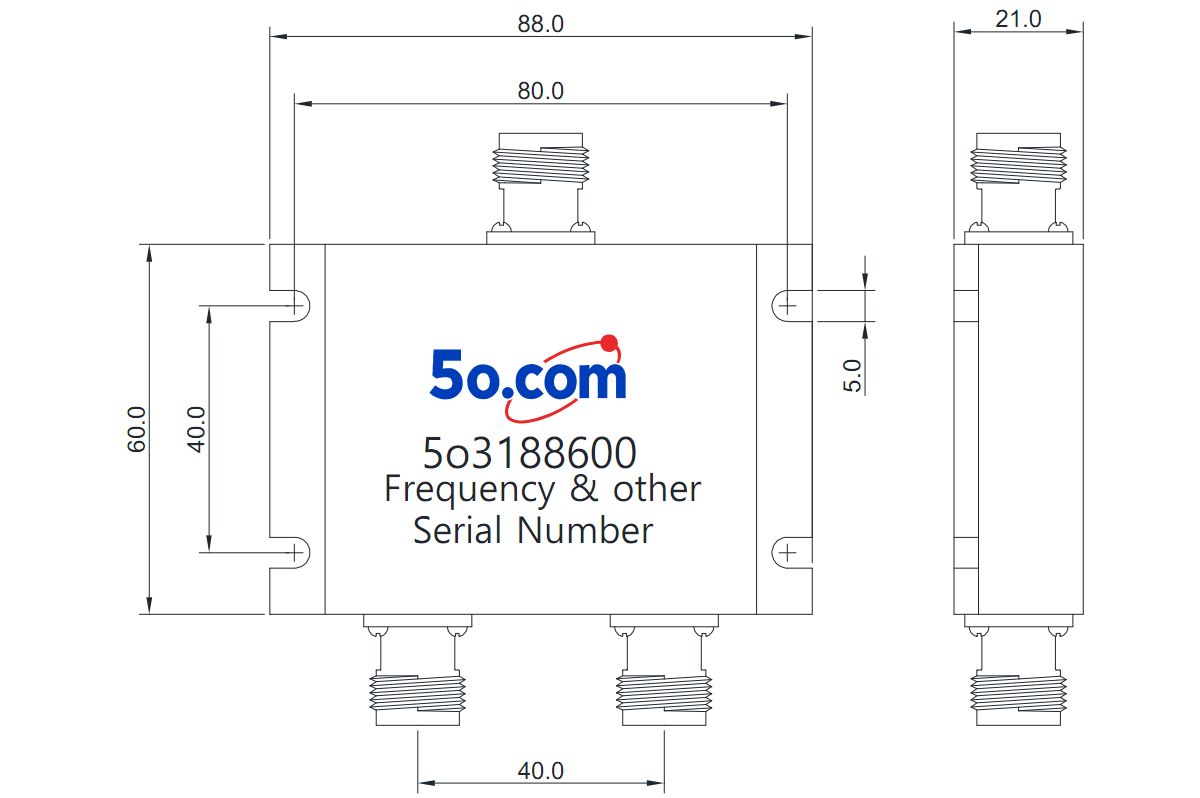

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
