    2 Way Power Divider 0.5 ~18.0GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    VSWR Output Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o314815700518NK

    0.5 ~ 18.0

    16

    1.6

    1.5

    1.5(Split   3dB)

    ±5˚

    ±0.3dB

    N Female

    Basic Specifications

    Dimension

    48*157*20mm

    Impedance

    50Ω

    Splitter   Power

    20W

    Operating   Temperature

    -55 ~ +85℃

    Combiner   Power

    1W

    Storage Temperature

    -55~+125℃

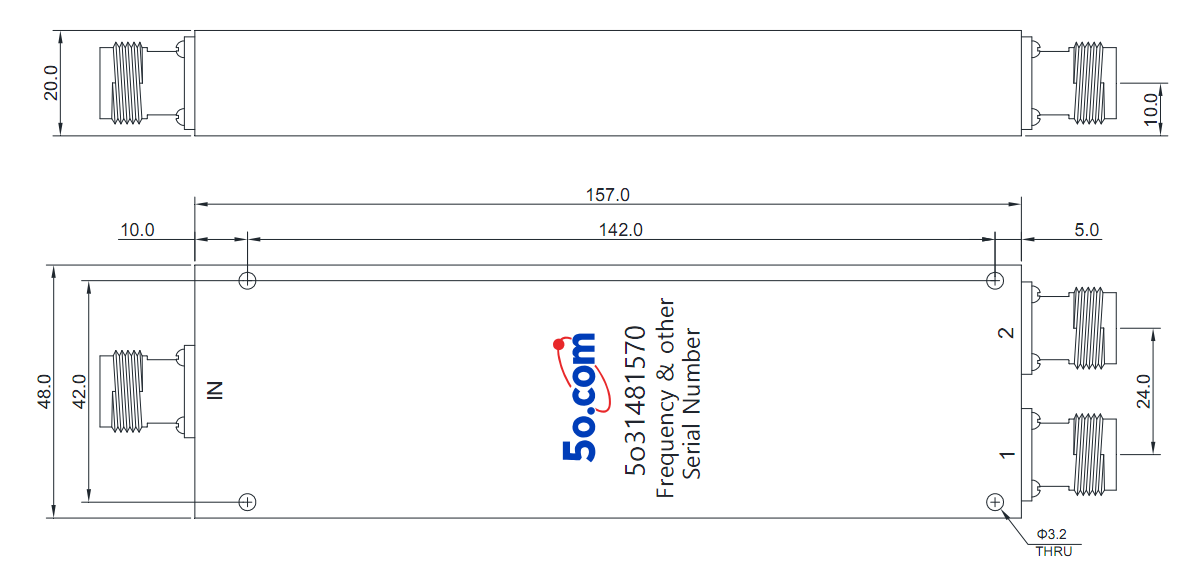

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
