    2 Way Power Divider 350 ~6000MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR

    Input

    Max

    Ripple Max(dB)

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector

    Type

    5o31427303506000SK

    350~6000

    16

    1.5

    1.2

    1.8(Split   3dB)

    ±5˚

    ±0.4dB

    SMA Female

    Basic Specifications

    Dimension

    42*73.5*11.5mm

    Impedance

    50Ω

    Splitter   Power

    25W

    Operating   Temperature

    -55 ~ +80℃

    Combiner   Power

    1W

    Storage Temperature

    -55~+125℃

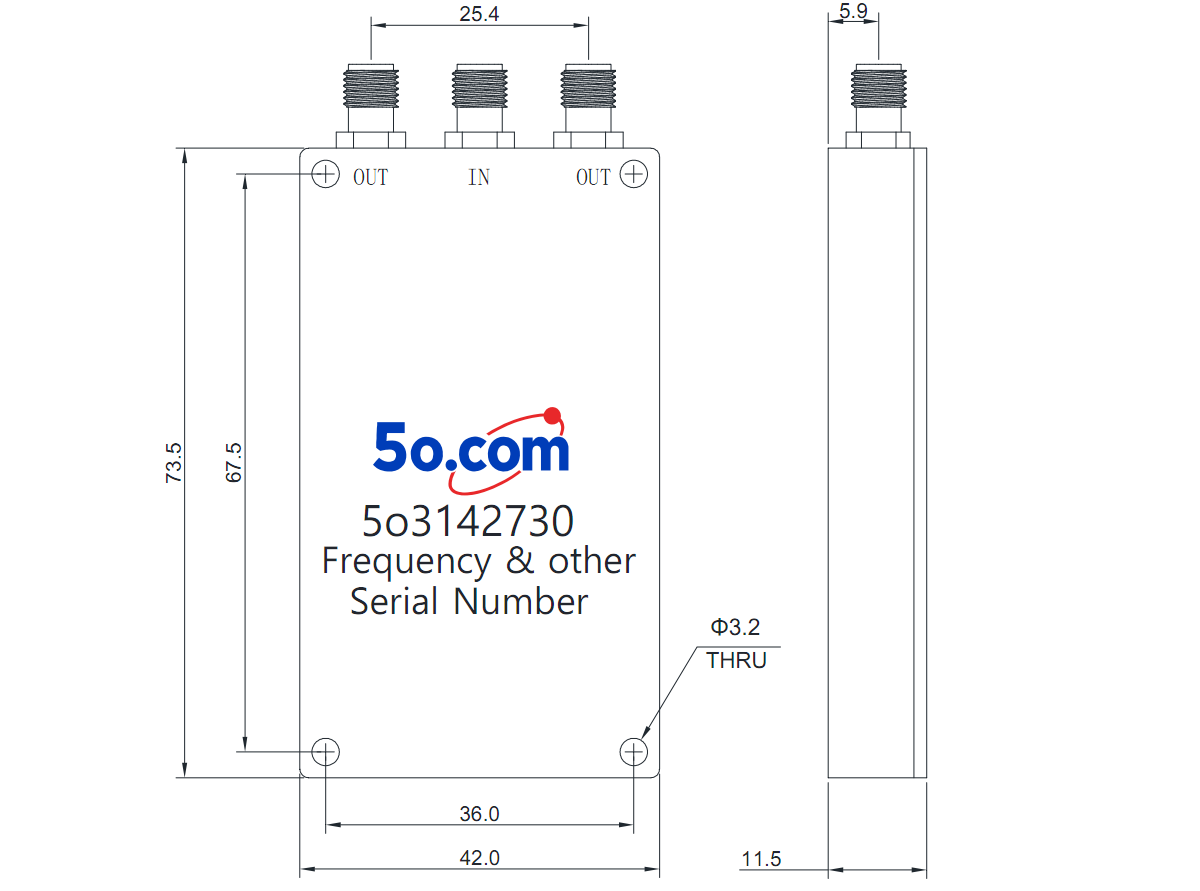

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
