    2 Way Power Divider 500 ~6000MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range

    (GHz)

    Isolation

    Min(dB)

    VSWR

    Input Max

    VSWR

    Output Max

    Insertion Loss

    Max(dB)

    Phase

    Unbalance

    Amplitude

    Unbalance

    Connector

    Type

    5o31315205006000SK

    0.5 ~ 6.0

    20

    1.4

    1.3

    0.8(Split 3dB)

    ±6˚

    ±1.0dB

    SMA Female

    Basic Specifications

    Dimension

    31*52*10mm

    Impedance

    50Ω

    Splitter   Power

    10W

    Operating   Temperature

    -55 ~ +85℃

    Combiner   Power

    3W

    Storage Temperature

    -55~+125℃

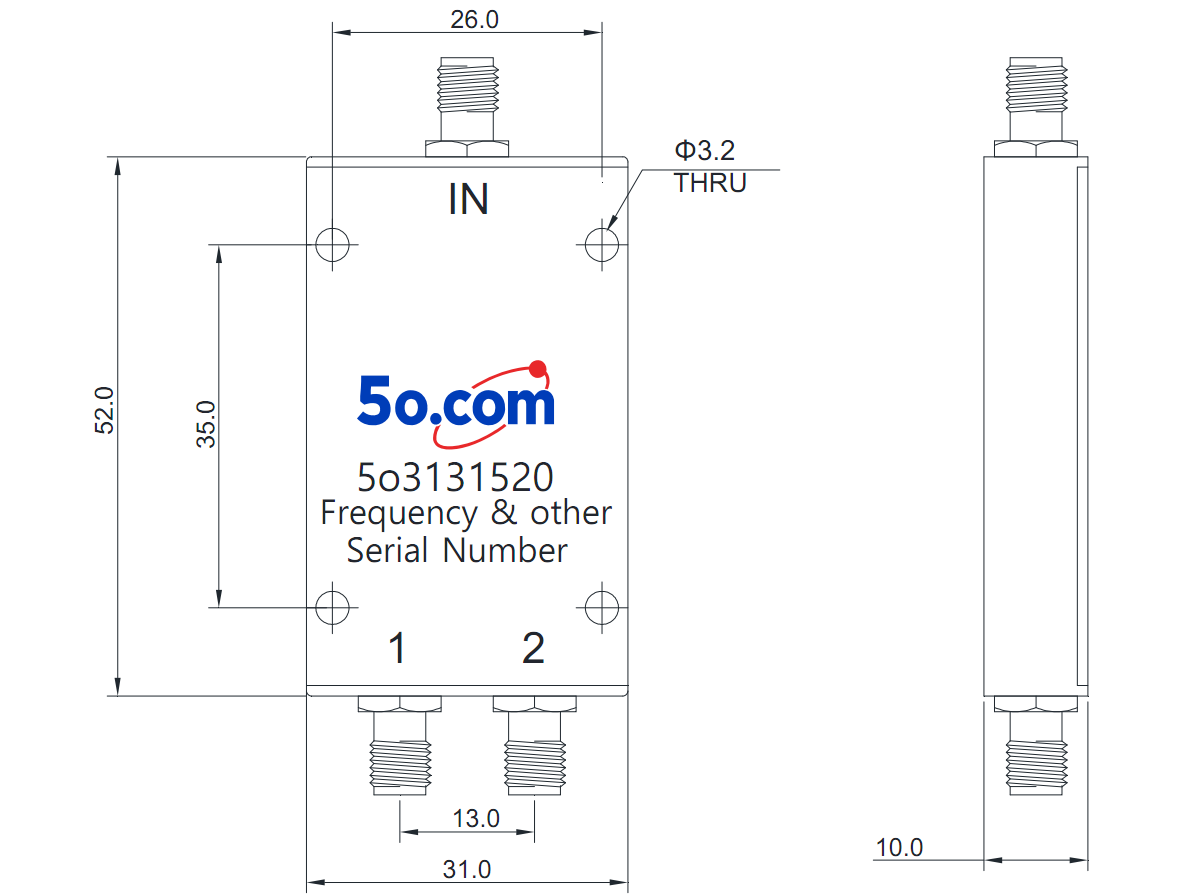

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
