2 Way Power Divider 70 to 520MHz 5o311581220

2 Way Power Divider 70 ~ 520MHz

Application

▶Wireless communication system.

▶Radar and satellite systems.

▶It supports a one-year standard warranty.

▶Military, Space and Commercial applications.

▶Testing and measuring equipment.

RF Characteristics

Part Number

Frequency Range (MHz)

Isolation

Min(dB)

VSWR

Max

Insertion Loss

Max(dB)

Phase Unbalance

Amplitude Unbalance

Connector

Type

5o31158122070T520NK

70 ~ 520

20

1.3

0.7(Split 3dB)

±3˚

±0.3dB

N Female

5o31158122070T520SK

70 ~ 520

20

1.3

0.7(Split 3dB)

±3˚

±0.3dB

SMA Female

Basic Specifications

Dimension	15812224mm	Impedance	50Ω
Splitter Power	50W	Operating Temperature	-20 ~ +70℃
Combiner Power	2W	Storage Temperature	-55~+125℃

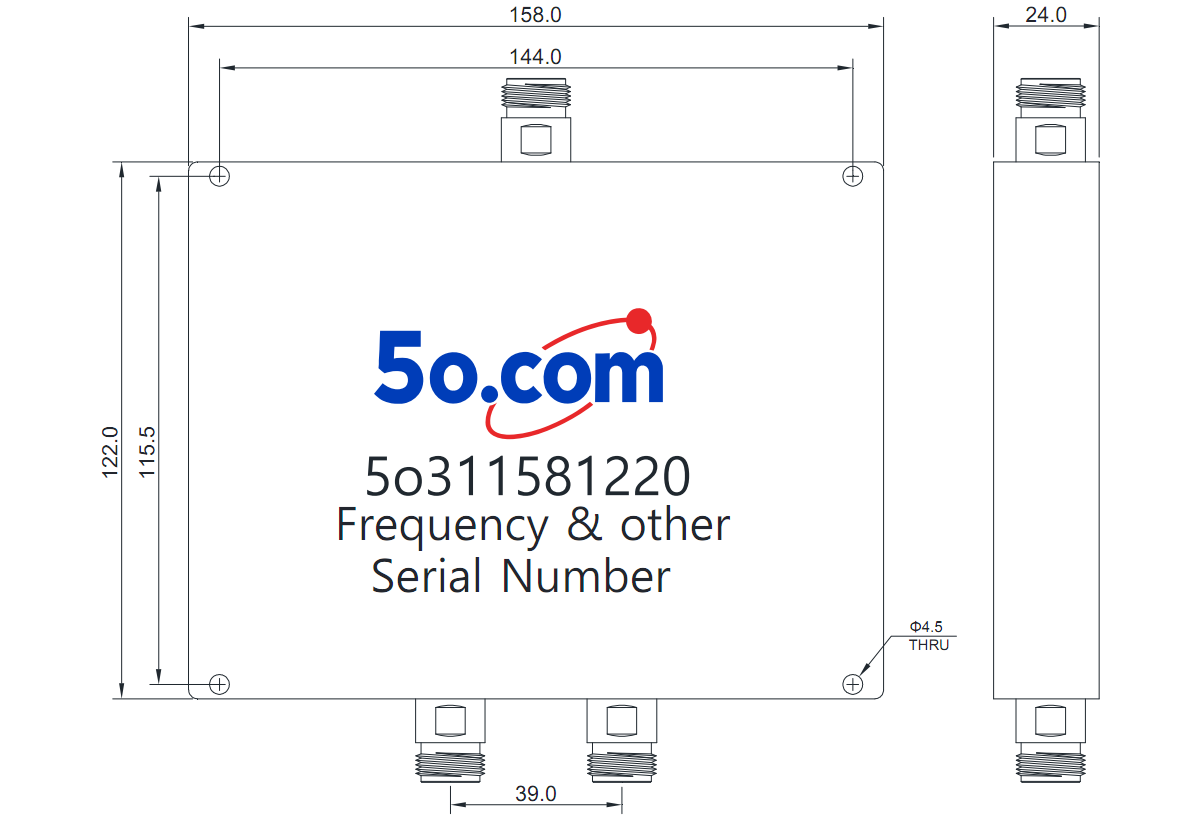

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
