Part   Number

Frequency   Range

 (MHz)

Isolation
  Min(dB)

VSWR
  Max

TX

RX

5o2T8R452UB22
  361366NKC40BK

361 ~ 366

351 ~ 356

TX-TX: 70dB   ANT-TX: 50dB   RX-RX: 25dB

1.25:1 Max. @Port   1.3:1 Max. @ANT & Coup

5o2T8R452UB22
  380395NKC40BK

390 ~

395

380 ~

385

TX-TX: 70dB     ANT-TX: 50dB   RX-RX: 25dB

1.25:1   Max. @Port   1.3:1 Max. @ANT & Coup

5o2T8R452UB22
  402415NKC40BK

411 ~ 415

402 ~ 406

TX-TX: 70dB   ANT-TX: 50dB   RX-RX: 25dB

1.25:1 Max. @Port   1.3:1 Max. @ANT & Coup

5o2T8R452UB22
  419436NKC40BK

431 ~

436

419 ~

425

TX-TX: 70dB     ANT-TX: 50dB   RX-RX: 25dB

1.25:1   Max. @Port   1.3:1 Max. @ANT & Coup

5o2T8R452UB22
  455470NKC40BK

465 ~ 470

455 ~ 460

TX-TX: 70dB   ANT-TX: 50dB   RX-RX: 25dB

1.25:1 Max. @Port   1.3:1 Max. @ANT & Coup

Insertion Loss

5.5dB Max. @TX-ANT

Duplexer

85dB Min. @TX-RX

Number of Channels

N Female @2xTX    N Female @8xRX  N Female @1xANT
  BNC Female @TX Coup & RX Coup(40±1dB Coupler)

Input Power

TX-ANT 50W/CH

Receiver Multicoupler Amp

Yes

Maximum Amplifier Gain

ANT-RX(+5~+15dBm)±1dBm
  1 2 4 8 Dial Switch Combination, 1db Step Adjustable

Amplifier NF

3.5dB Max.

Alarm mode

Amplifier fault alarm

Standard Voltage Required

DC 12V

Weight

~15 Kg

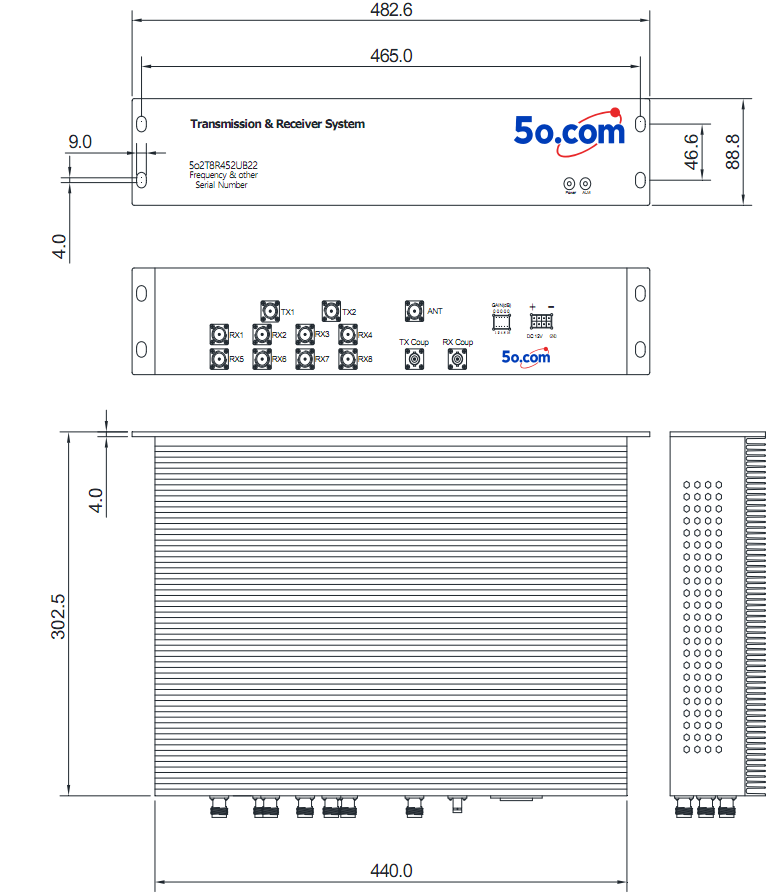

Dimension

2U (440*298.5*88.8)mm

Appearance color

Black

Operating Temp

-30~+75℃

Storage temperature

-55~+125℃
