    2 way Combiner / Hybrid Coupler 175 ~ 400MHz

    Application


    ▶Multi-system shared antenna feed system..

    ▶Base station and repeater system.

    ▶Indoor distribution system.

    ▶Radio intercom system.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    Isolation
      Min(dB)

    VSWR
      Max

    Connector

    Type

    Power(W)

    5o2T250230400175300NK

    175 ~ 300

    0.8

    (Coupling 3dB)

    23

    1.3

    N Female

    200(2x100)

    5o2T25230400175300SK

    175 ~ 300

    0.8

    (Coupling 3dB)

    23

    1.3

    SMA Female

    100(2x50)

    5o2T250230400225400NK

    225~ 400

    0.8

    (Coupling 3dB)

    23

    1.3

    N Female

    200(2x100)

    5o2T250230400225400SK

    225~ 400

    0.8

    (Coupling 3dB)

    23

    1.3

    SMA Female

    100(2x50)

    Basic Specifications

    Dimension

    230*40*26.5mm

    Operating   Temperature

    -20 ~ +70℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

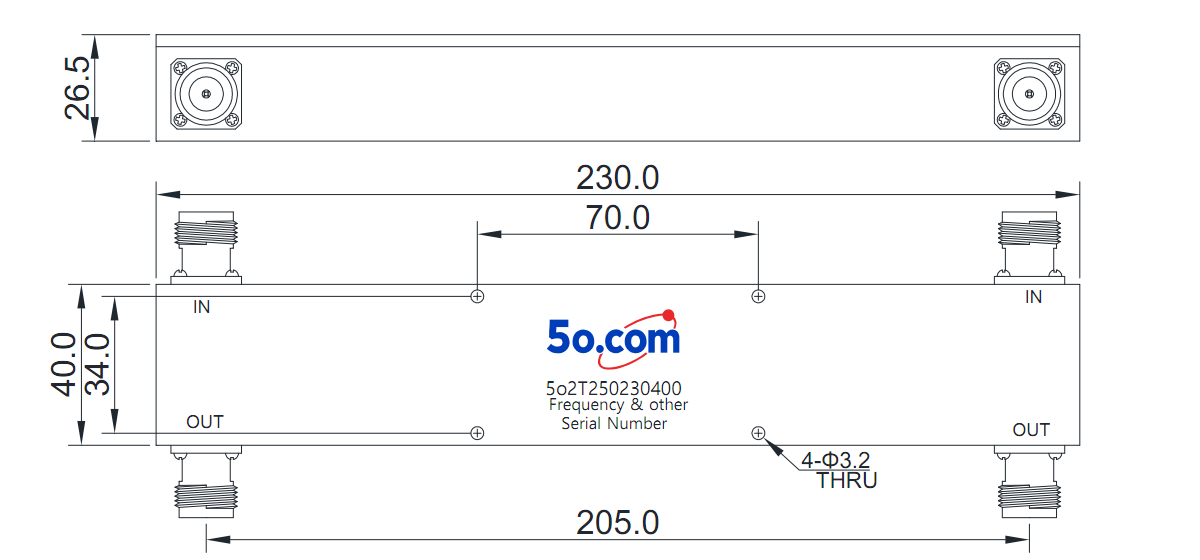

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
