    2 way Combiner / Hybrid Coupler 70 ~ 174MHz

    Application




    ▶Multi-system shared antenna feed system..

    ▶Base station and repeater system.

    ▶Indoor distribution system.

    ▶Radio intercom system.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    Isolation
      Min(dB)

    VSWR
      Max

    Connector

    Type

    Power(W)

    5o2T150422165070174NK

    70 ~ 174

    0.5

    (Coupling 3dB)

    25

    1.4

    N Female

    200(2x100)

    5o2T150422165070174SK

    70 ~ 174

    0.5

    (Coupling 3dB)

    25

    1.4

    SMA Female

    100(2x50)

    Basic Specifications

    Dimension

    422*165*81mm

    Operating   Temperature

    -30 ~ +60℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

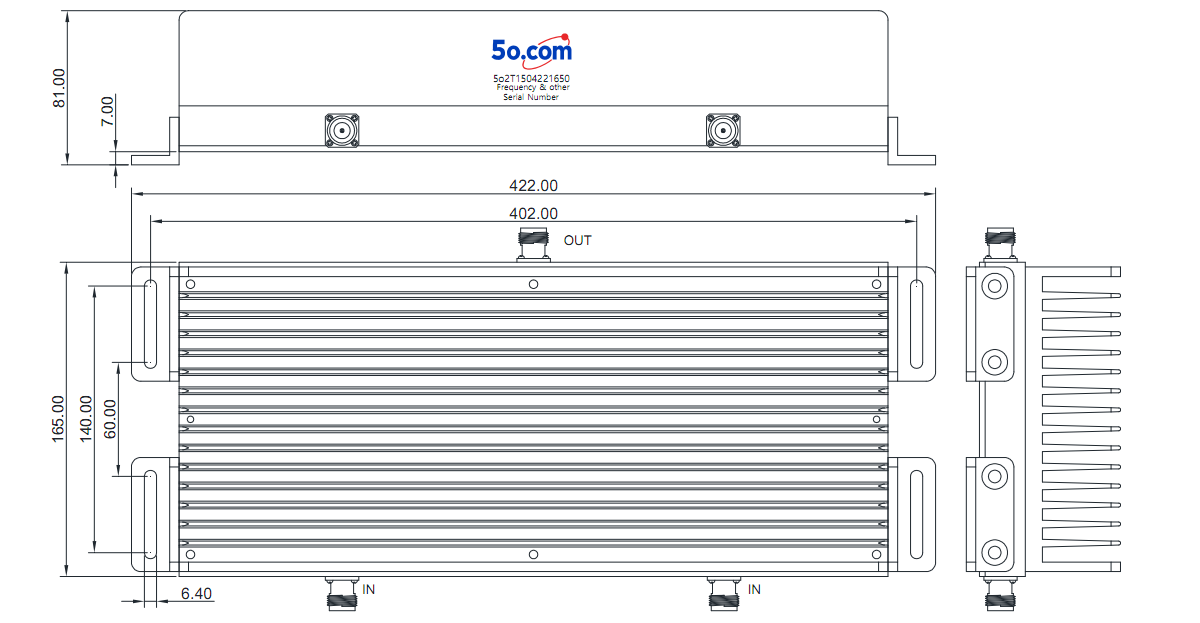

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
