    Band Stop Filter 460 ~ 520MHz

    Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Band Reject

    Frequency

    (MHz)

    Pass Band Frequency

    Band Reject

    Rejection

    Min(dB)

    VSWR

    Max

    Insertion Loss

    Max(dB)

    Passband Ripple

    Connector

    Type

    5o2940120

    460520SK

    460 ~ 520

    DC~402MHz   578~2000MHz

    65

    1.8

    2.5

    2.0

    SMA Female

    Basic Specifications

    Dimension

    40.4*12*10mm

    Impedance

    50Ω

    Power

    2W

    Operating Temperature

    -55~+85℃

    Appearance color

    Black

    Storage Temperature

    -55~+125℃

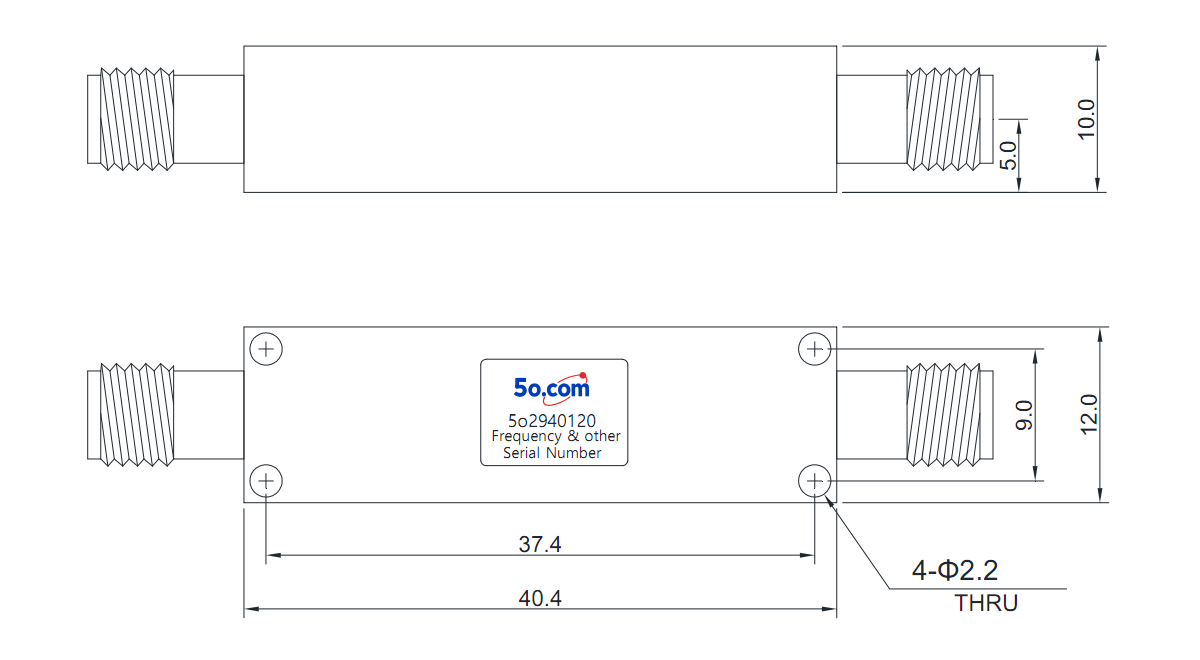

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
