Part Number

Band Reject

Frequency

(MHz)

Pass Band Frequency

Band

Reject Rejection

Min(dB)

VSWR
  Max

Insertion

Loss

Max(dB)

Connector

Type

5o2931170018551875NK

1855 ~ 1875

DC~1840MHz
  1885~5000MHz

50

2.0

3.0

N Female

5o2931170018001885NK

1800 ~ 1885

DC~1770MHz
  1915~5000MHz

50

2.0

3.0

N Female

5o2931170018601875NK

1860 ~ 1875

DC~1840MHz
  1895~4500MHz

40

2.0

3.0

N Female

5o2931170021002180NK

2100 ~ 2180

DC~2070MHz
  2210~5000MHz

50

2.0

3.0

N Female

5o2931170024902700NK

2490 ~ 2700

DC~2460MHz
  2730~5000MHz

50

2.0

3.0

N Female

5o2931170034003800NK

3400 ~ 3800

DC~3350MHz
  4050~7500MHz

50

2.0

3.0

N Female

5o2931170034003800SK

3400 ~ 3800

DC~3350MHz
  4050~7500MHz

50

2.0

3.0

SMA Female

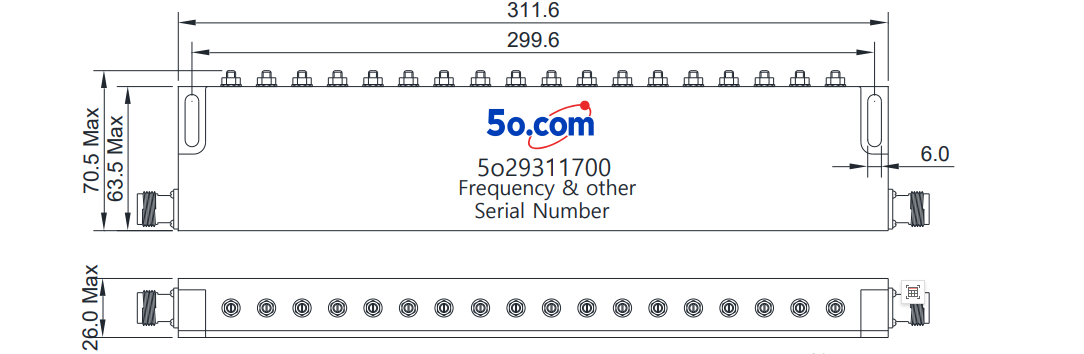

Dimension

311.6*70.5*26mm

Impedance

50Ω

Power

50W

Operating Temperature

-55~+85℃

Appearance   color

Black

Storage Temperature

-55~+125℃
