    Band Stop Filter 791 ~ 821MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Band Reject Frequency (MHz)

    Band Reject Rejection Min(dB)

    Pass Band Frequency

    VSWR Max

    Insertion Loss Max(dB)

    Connector Type

    5o292801040791821SK

    791 ~ 821

    40

    DC~700MHz

    832~2000MHz

    1.7

    1.5

    SMA Female

    5o292801040791821NK

    791 ~ 821

    40

    DC~700MHz

    832~2000MHz

    1.7

    1.5

    N Female

    5o292801040791821SKPK1200

    791 ~ 821

    40

    DC~700MHz

    832~1200MHz

    1.5

    1.5

    SMA Female

    Basic Specifications

    Dimension

    280*104*48mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -55~+85℃

    Appearance   color

    Black

    Storage Temperature

    -55~+125℃

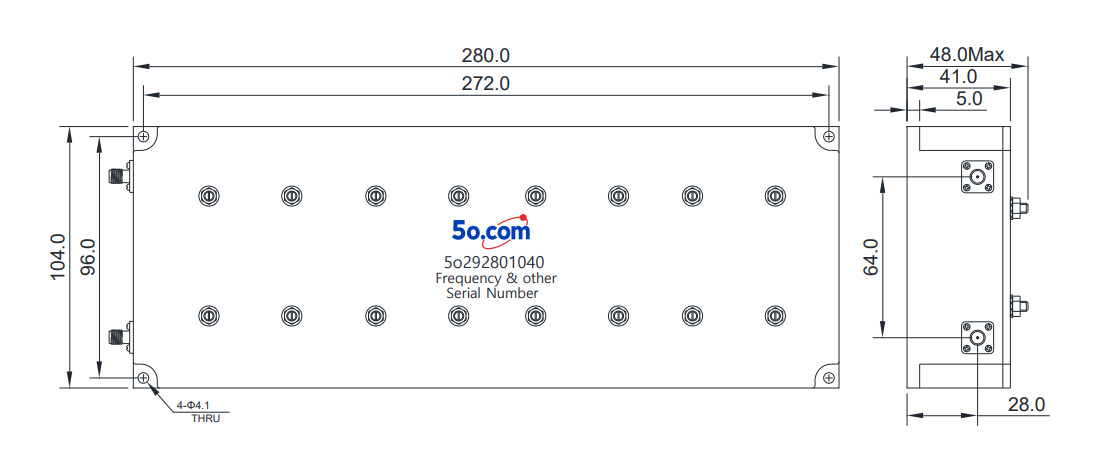

    Overall Dimension(mm)


     Tolerances: ±2% unless otherwise stated.
