Band Stop Filter 1700 to 1900MHz 5o29209600

Band Stop Filter 1700 ~ 1900MHz

Application

▶Wireless communication system.

▶Audio processing, image and data acquisition.

▶Biomedical signal processing.

▶Radar and sensors.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Band Reject

Frequency

(MHz)

Pass Band Frequency

Band

Reject Rejection

Min(dB)

VSWR
Max

Insertion

Loss

Max(dB)

Connector

Type

5o2920960017001900SK

1700 ~ 1900

DC~1550MHz
2050~4500MHz

40

2.0

1.5

SMA Female

5o2920960017001900NK

1700 ~ 1900

DC~1550MHz
2050~4500MHz

40

2.0

1.5

N Female

Basic Specifications

Dimension	2096026mm	Impedance	50Ω
Power	50W	Operating Temperature	-55~+85℃
Appearance color	Black	Storage Temperature	-55~+125℃

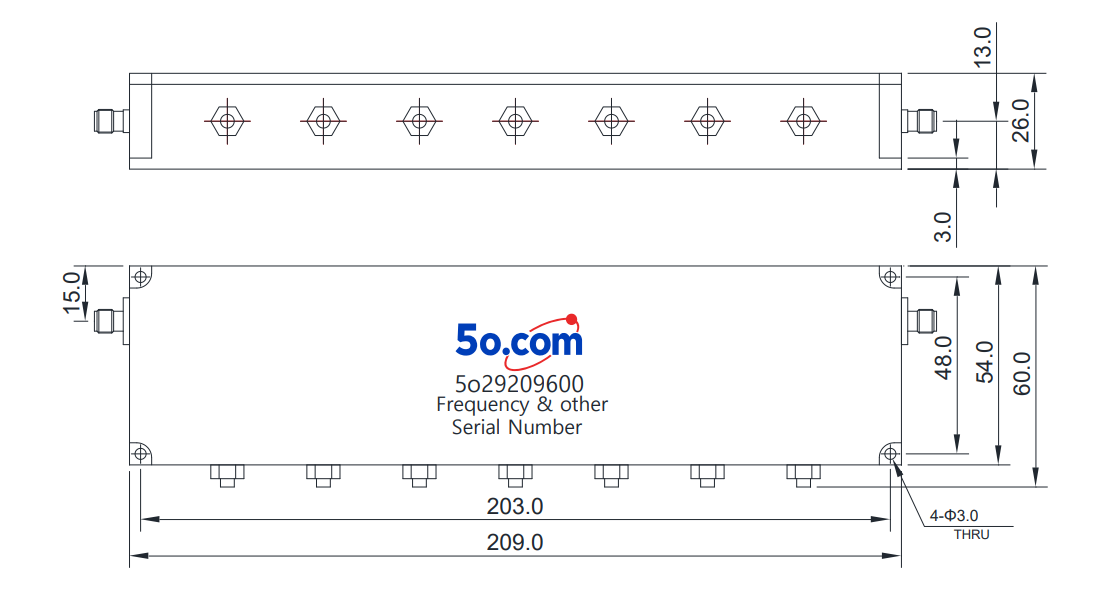

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
