    Band Stop Filter 1258 ~ 1278MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Band Reject

    Frequency

    (MHz)

    Pass Band Frequency

    Band

    Reject Rejection

    Min(dB)

    VSWR
      Max

    Insertion

    Loss

    Max(dB)

    Connector

    Type

    5o2916168012581278SK

    1258 ~ 1278

    DC~1208MHz
      1328~3000MHz

    45

    2.0

    1.5

    SMA Female

    Basic Specifications

    Dimension

    161*68*16mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -55~+85℃

    Appearance   color

    Black

    Storage Temperature

    -55~+125℃

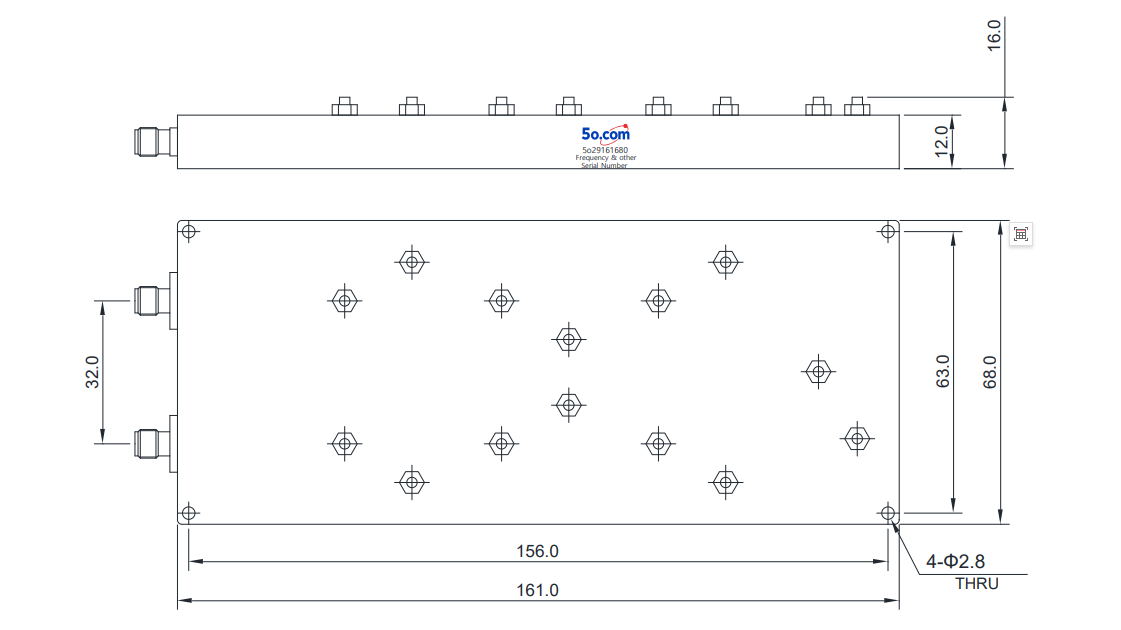

    Overall Dimension(mm)


                          Tolerances: ±2% unless otherwise stated.
