Band Stop Filter 868 to 870MHz 5o29158670

Band Stop Filter 868 ~ 870MHz

Application

▶Wireless communication system.

▶Audio processing, image and data acquisition.

▶Biomedical signal processing.

▶Radar and sensors.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Band Reject

Frequency

(MHz)

Band Reject

Rejection

Min(dB)

Pass Frequency

(MHz)

Insertion Loss

Max(dB)

VSWR

Max

Connector

Type

5o29158670868870NK

868 ~ 870

50

DC~821MHz

925~1200MHz

0.5

1.3

N Female

5o29158670868870SK

868 ~ 870

50

DC~821MHz

925~1200MHz

0.5

1.3

SMA Female

Basic Specifications

Dimension	1586743mm	Impedance	50Ω
Power	50W	Operating Temperature	-55~+85℃
Appearance color	Black	Storage Temperature	-55~+125℃

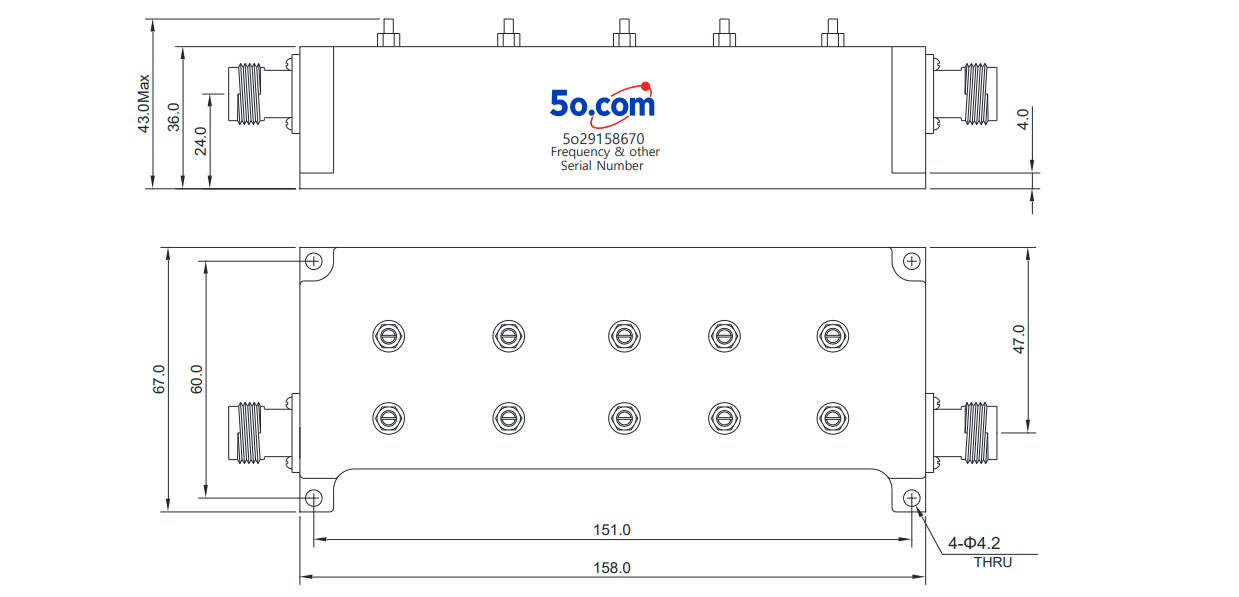

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
