    High Pass Filter 800 ~ 4000MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency  Range

    (MHz)

    Insertion Loss
      Max(dB)

    Ripple

    Max(dB)

    Isolation

    Min(dB)

    VSWR
      Max

    Connector Type

    5o28719108004000NK

    800 ~ 4000

    1.2

    0.5

    60dB @DC-600MHz

    1.8

    N Female

    5o28719108004000SK

    800 ~ 4000

    1.2

    0.5

    60dB @DC-600MHz

    1.8

    SMA Female

    Basic Specifications

    Dimension

    71*91*22mm

    Impedance

    50Ω

    Power

    5W

    Operating Temperature

    -30 ~ +70℃

    Appearance color

    Black

    Storage Temperature

    -55 ~ +125℃

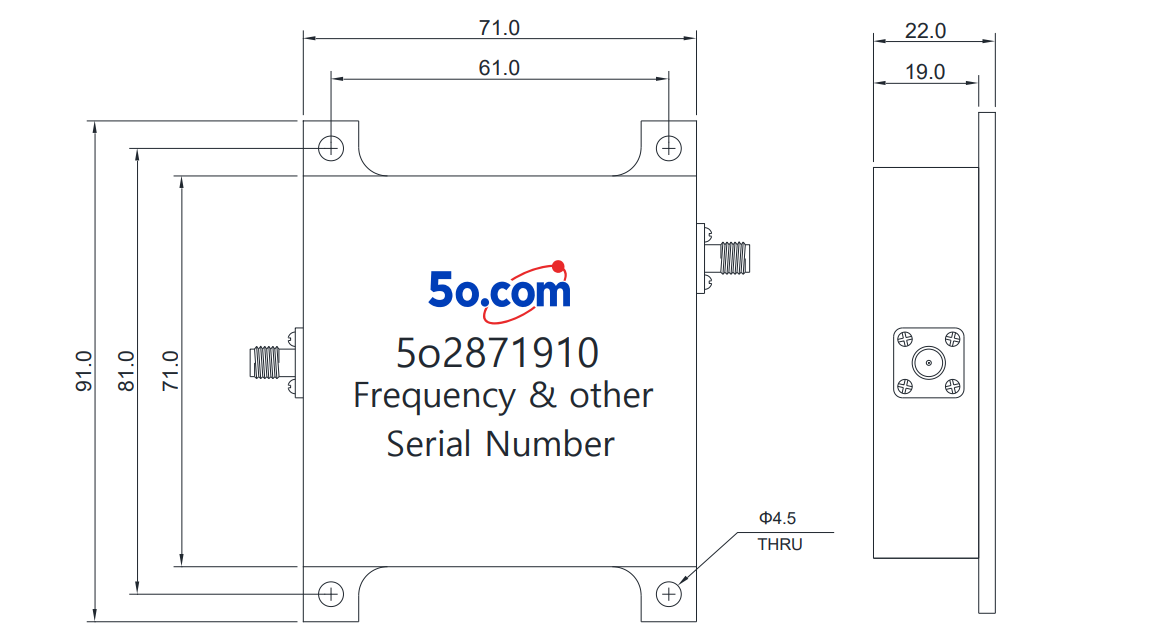

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
