    High Pass Filter 2.0 ~ 13.0GHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range



     (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o2840220213SK

     2.0 ~ 13.0

    1.5

    1.8

    40dB @DC-934MHz

    SMA Female

    5o284022021275SK

     2.0 ~ 12.75

    2.0

    1.8

    60dB @DC-890MHz

    SMA Female

    Basic Specifications

    Dimension

    40*22*11mm

    Impedance

    50Ω

    Power

    30W

    Operating Temperature

    -40 ~ +85℃

    Appearance color

    Black

    Storage Temperature

    -55 ~ +125℃

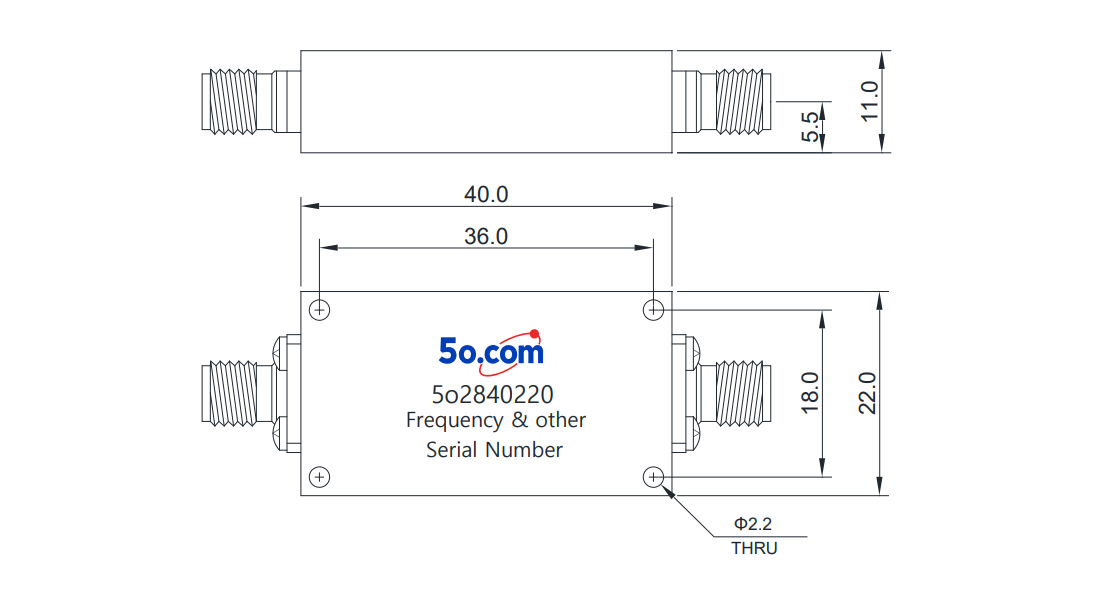

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
