    High Pass Filter 118 ~ 160MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o2839340118160BK

    118 ~ 160

    0.9 @118MHz
      0.4 @127~160MHz

    1.3 @127~140MHz

    25dB @88~108MHz

    BNC Female

    5o2839340118160SK

    118 ~ 160

    0.9 @118MHz
      0.4 @127~160MHz

    1.3 @127~140MHz

    25dB @88~108MHz

    SMA Female

    5o2839340118160NK

    118 ~ 160

    0.9 @118MHz
      0.4 @127~160MHz

    1.3 @127~140MHz

    25dB @88~108MHz

    N Female

    Basic Specifications

    Dimension

    39*34*20mm

    Impedance

    50Ω

    Power

    5W

    Operating Temperature

    -40~+85℃

    Appearance color

    Black

    Storage Temperature

    -55~+125℃

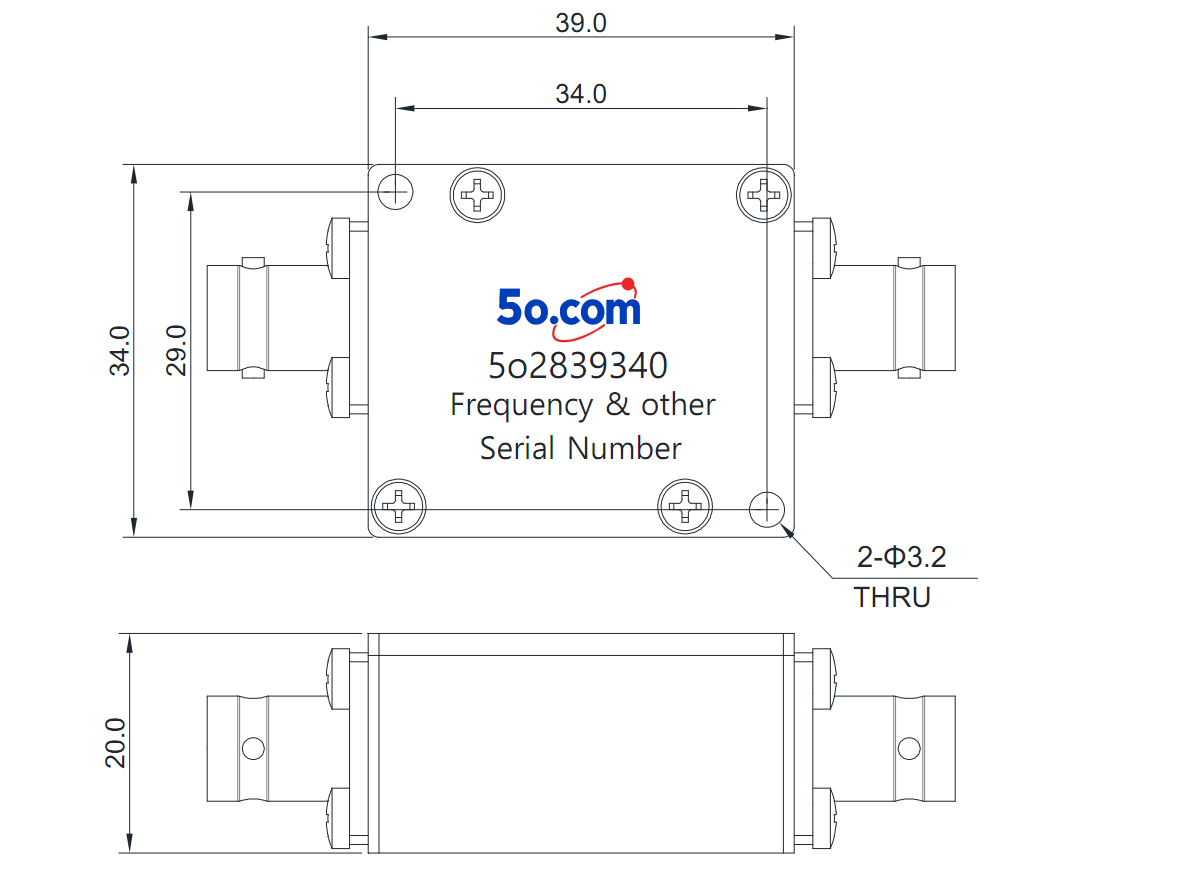

    Overall Dimension(mm)


                          Tolerances: ±2% unless otherwise stated.
